CAB206F Slim Surface Indirect Linear Shelf Light with Flex Frosted Lens

CAB206F is an ultra-slim, surface-mounted linear light bar with an indirect, oblique backlight projection for cabinets and closets. Its black matte finish and slender triangular design allow it to blend seamlessly into its surroundings. Available in custom lengths and finishes to meet specific project requirements.

blank
blank
blank
blank
blank

Characteristics

CAB206F is an ultra-slim, surface-mounted linear light bar with an indirect, oblique backlight projection for cabinets and closets. Its black matte finish and slender triangular design allow it to blend seamlessly into its surroundings. Available in custom lengths and finishes to meet specific project requirements.

Electrical

Input

24 Volt DC
3.6 W/ft – 12 W/m

Power Supply

Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage

Operating Temp

-31°F to + 113°F
-35°C to + 45°C

Certification

U.S./Canada UL approved Type IC Recessed

Control

Options

Combination of remote and wireless wall dimmers
Smart light control mobile app

blank blank  blank

Multi-zone

Individual and zone options for color temperature and brightness control

Dimming

Brightness and cool to warm light mode with memory saving options

Physical

Dimension

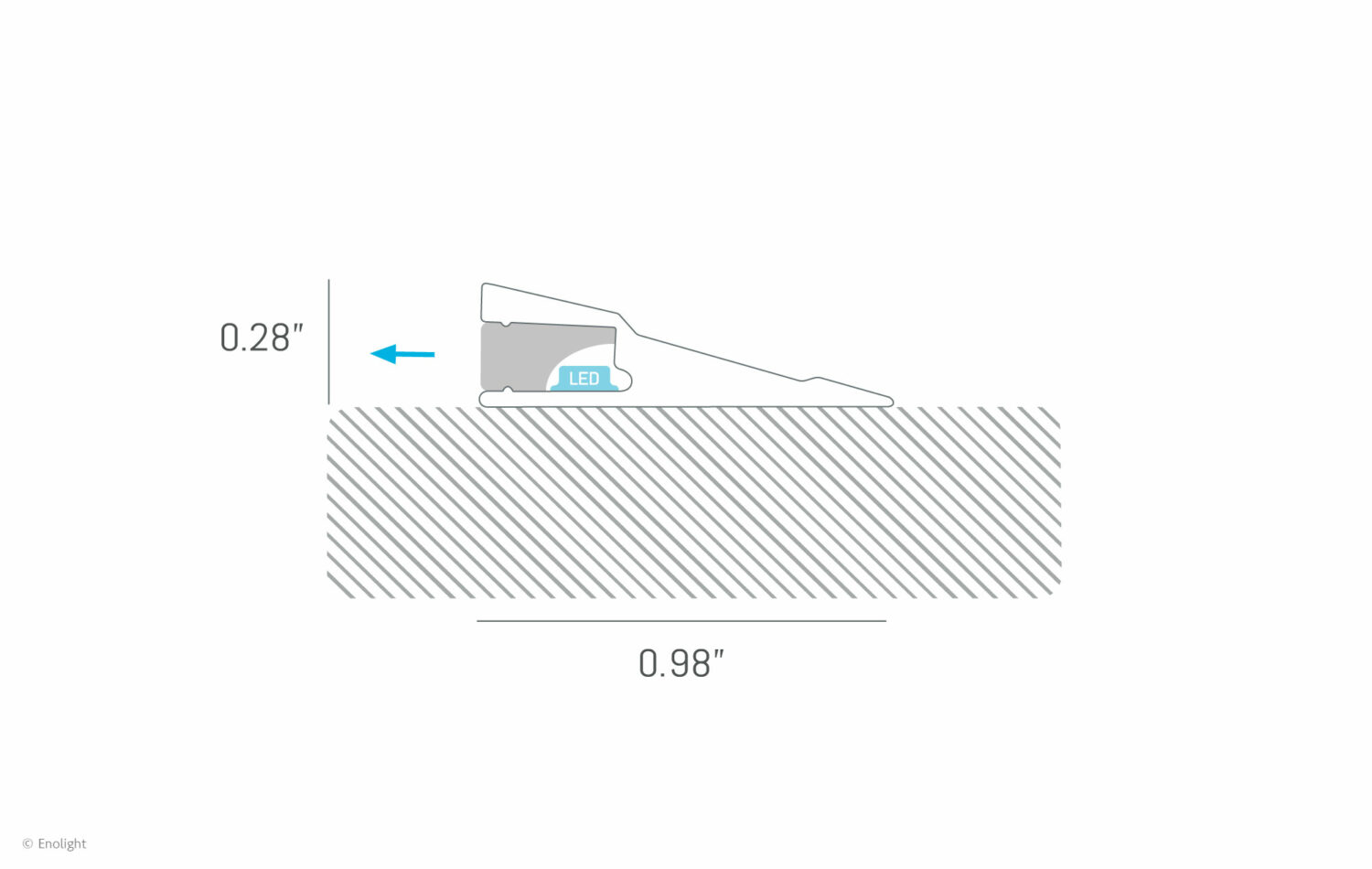

WxH: 0.98 in x 0.28 in – 25mm x 7mm
Length: Up to 8 ft – 2.44 m
Weight: 0.15 lbs/ft – 0.23 kg/m

Finish

Mill, black, white, Silver anodized finish

Field

Damp and dry applications

Mounting

Recessed in drywall, wall and ceiling boards

blank  blank  blank

Light

LED Type

Single white, tunable white, Circadian BIOS SkyBlue

CCT

3000K 3500K 4000K 4500K 5000K 5500K

blank

CRI Varieties

97 full spectrum natural color with bright contrast

Brightness

200 Lm/ft – 700 Lm/m

Life time

50,000 hours

Warranty

5 years warranty
