CAB207F Invisible Up Down Beam Glow Shelf Backlight with Flex Frosted Lens
CAB207F is an ultra-slim linear light with a small trim designed for hidden mounting along the rear edge of shelves using thermal adhesive tape. It provides uniform, indirect up and down backlighting through 1/4″ frosted lenses, improving visibility within cabinets and closets. Available in steel gray, black, or custom finishes and lengths.
Characteristics
CAB207F is an ultra-slim linear light with a small trim designed for hidden mounting along the rear edge of shelves using thermal adhesive tape. It provides uniform, indirect up and down backlighting through 1/4" frosted lenses, improving visibility within cabinets and closets. Available in steel gray, black, or custom finishes and lengths.
Electrical
Input
24 Volt DC
3.6 W/ft – 12 W/m
Power Supply
Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage
Operating Temp
-31°F to + 113°F
-35°C to + 45°C
Certification
U.S./Canada UL approved Type IC Recessed
Control
Options
Combination of remote and wireless wall dimmers
Smart light control mobile app
Multi-zone
Individual and zone options for color temperature and brightness control
Dimming
Brightness and cool to warm light mode with memory saving options
Physical

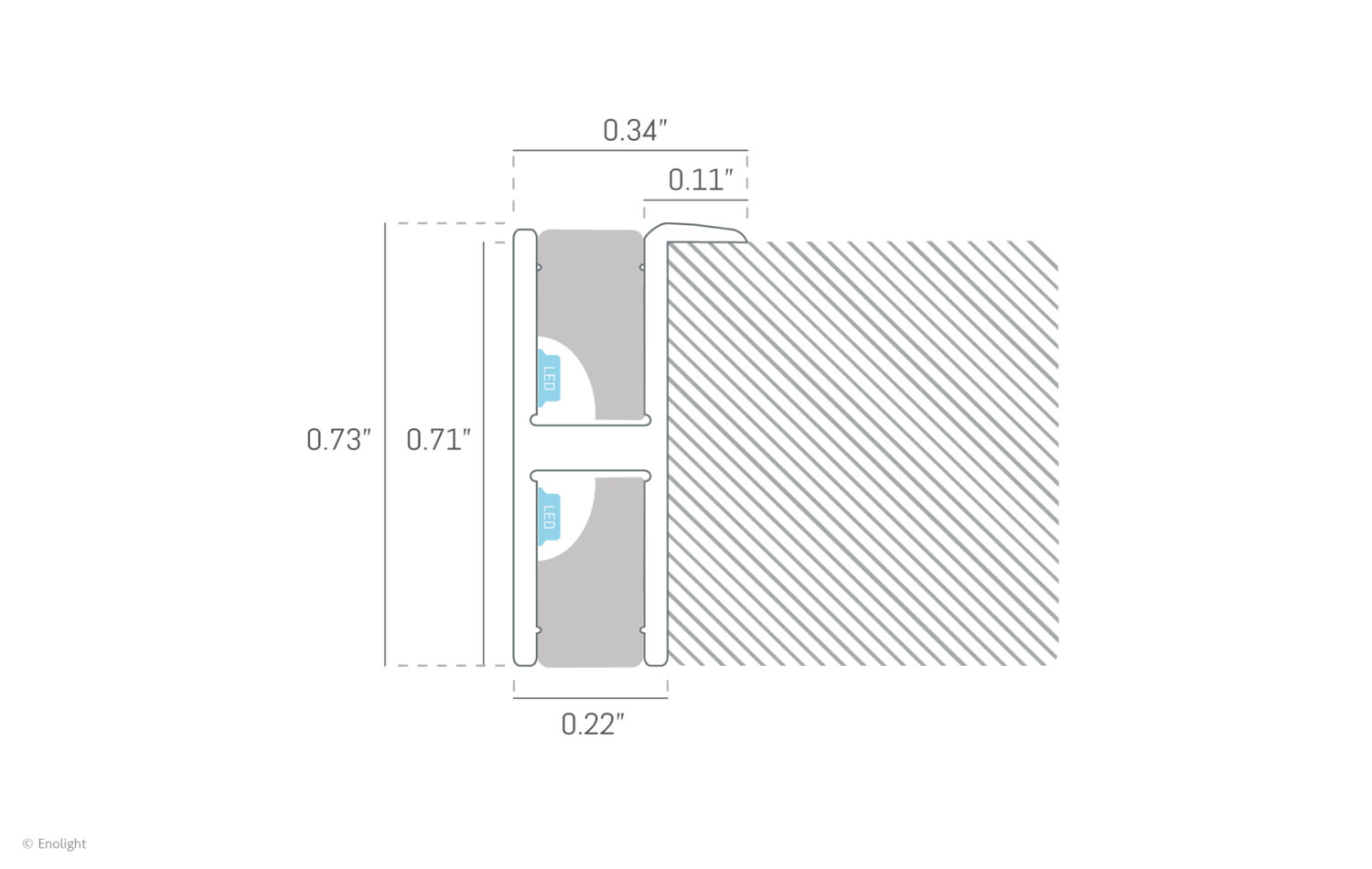

Dimension
WxH: 0.34 in x 0.71 in – 9mm x 18mm
Length: Up to 8 ft – 2.44 m
Weight: 0.13 lbs/ft – 0.2 kg/m
Finish
Mill, black, white, Silver anodized finish
Field
Damp and dry applications
Mounting
Recessed in drywall, wall and ceiling boards
Light
LED Type
Single white, tunable white, Circadian BIOS SkyBlue
CCT
3000K 3500K 4000K 4500K 5000K 5500K
CRI Varieties
97 full spectrum natural color with bright contrast
Brightness
200 Lm/ft – 700 Lm/m
Life time
50,000 hours
Warranty
5 years warranty
