EDG09C Ultra Slim Corner Fit Linear Light with Quarter Round Frosted Lens
EDG09C is designed to produce a uniform distribution of diffused light for interior applications such as vitrines and display cases or under-cabinets and closet lighting. EDG09C has a perfect corner fit construct and is installed using mount clips.
Characteristics
EDG09C is a 90° V-shape surface linear profile made of extruded aluminum housing with a protective silver anodized finish, capped with a curved frosted lens.
This linear LED luminaire is designed to produce a uniform distribution of diffused light for interior applications such as vitrines and display cases or under-cabinets and closet lighting. EDG09C has a perfect corner fit construct and is installed using mount clips. This channel comes in variable lengths up to 6.5 feet.*
EnoLight Edge series are complemented with dimmable, energy-efficient, dot-free LED, producing high color rendering index lighting. The bright white LED light source with CCT options from 2200K to 6000K provides the environment with desired lighting that fits the design concept.
The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. EDG09C is a perfect solution to produce even illumination for both residential and commercial applications.
Electrical
Input
24 Volt DC
3.6 W/ft – 12 W/m
Power Supply
Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage
Operating Temp
-31°F to + 113°F
-35°C to + 45°C
Certification
U.S./Canada UL approved Type IC Recessed
Control
Options
Combination of remote and wireless wall dimmers
Smart light control mobile app
Multi-zone
Individual and zone options for color temperature and brightness control
Dimming
Brightness and cool to warm light mode with memory saving options
Physical
Dimension

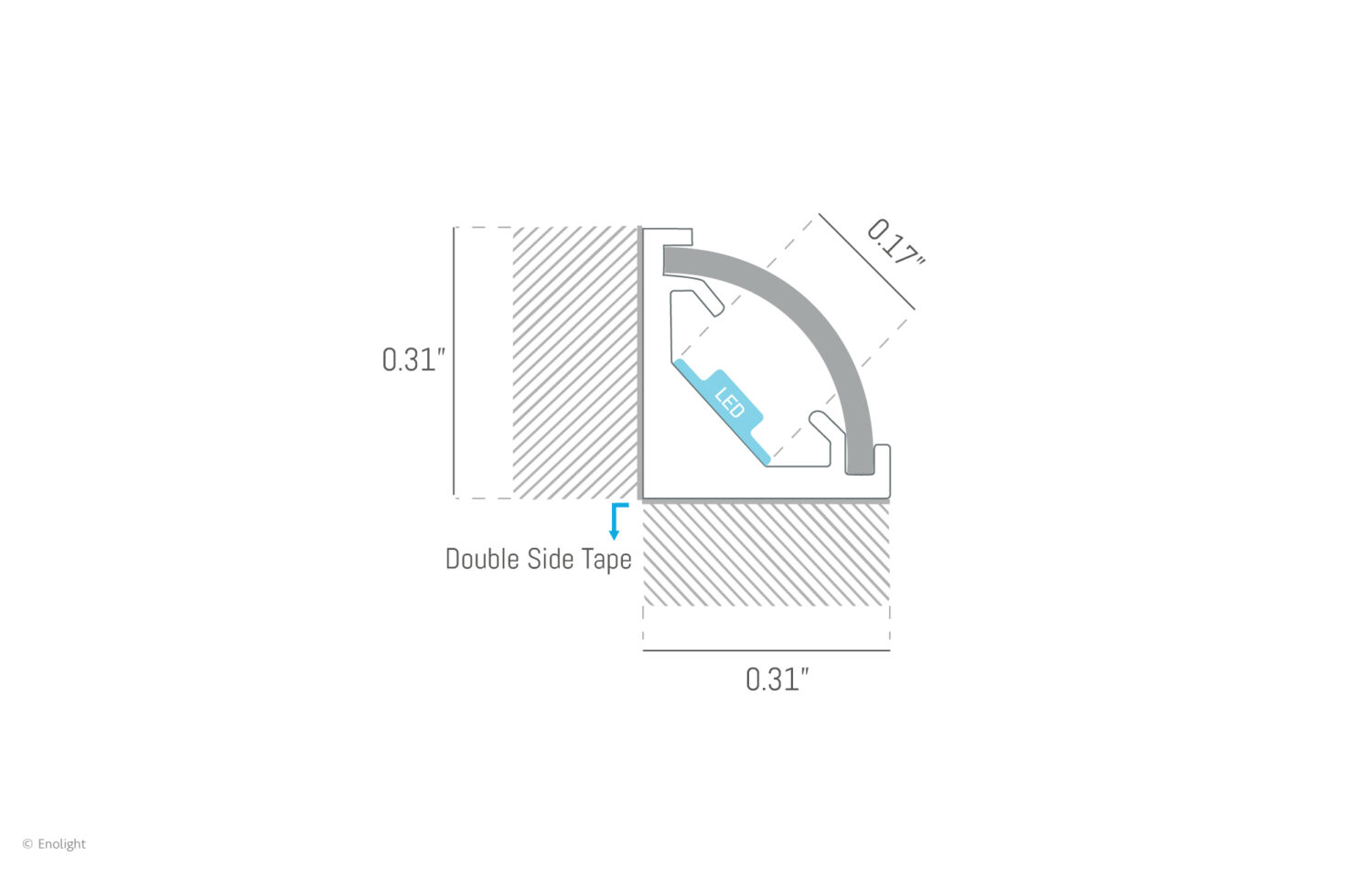

WxH: 0.31 in x 0.31 in – 8mm x 8mm
Length: Up to 8 ft – 2.5 m
Weight: 0.04 lbs/ft – 0.05 kg/m
Finish
Mill, black, white, Silver anodized finish
Field
Damp and dry applications
Mounting
Recessed in drywall, wall and ceiling boards
Light
LED Type
Single white, tunable white, Circadian BIOS SkyBlue
CCT
3000K 3500K 4000K 4500K 5000K 5500K
CRI Varieties
97 full spectrum natural color with bright contrast
Brightness
200 Lm/ft – 700 Lm/m
Life time
50,000 hours
Warranty
5 years warranty
