EDG2214F is the improved version of inner corner light replacing the older model SPK4615F. The upgraded 1/2″ frosted lens on EDG2214F is also a match for other models SPK6015F and HYN1409F.

SPK4615F Trimless Inner Corner Plaster-In Linear Light with 1/2″ Frosted Lens

SPK4615F is designed to produce a uniform distribution of diffused light in drywall platforms. This linear LED luminaire is suitable for inside corners and comes in variable lengths.

Tags:
Product of Canada
EnoLight Approved
Tunable Dimmable
Dry Damp
IC Rated

Characteristics

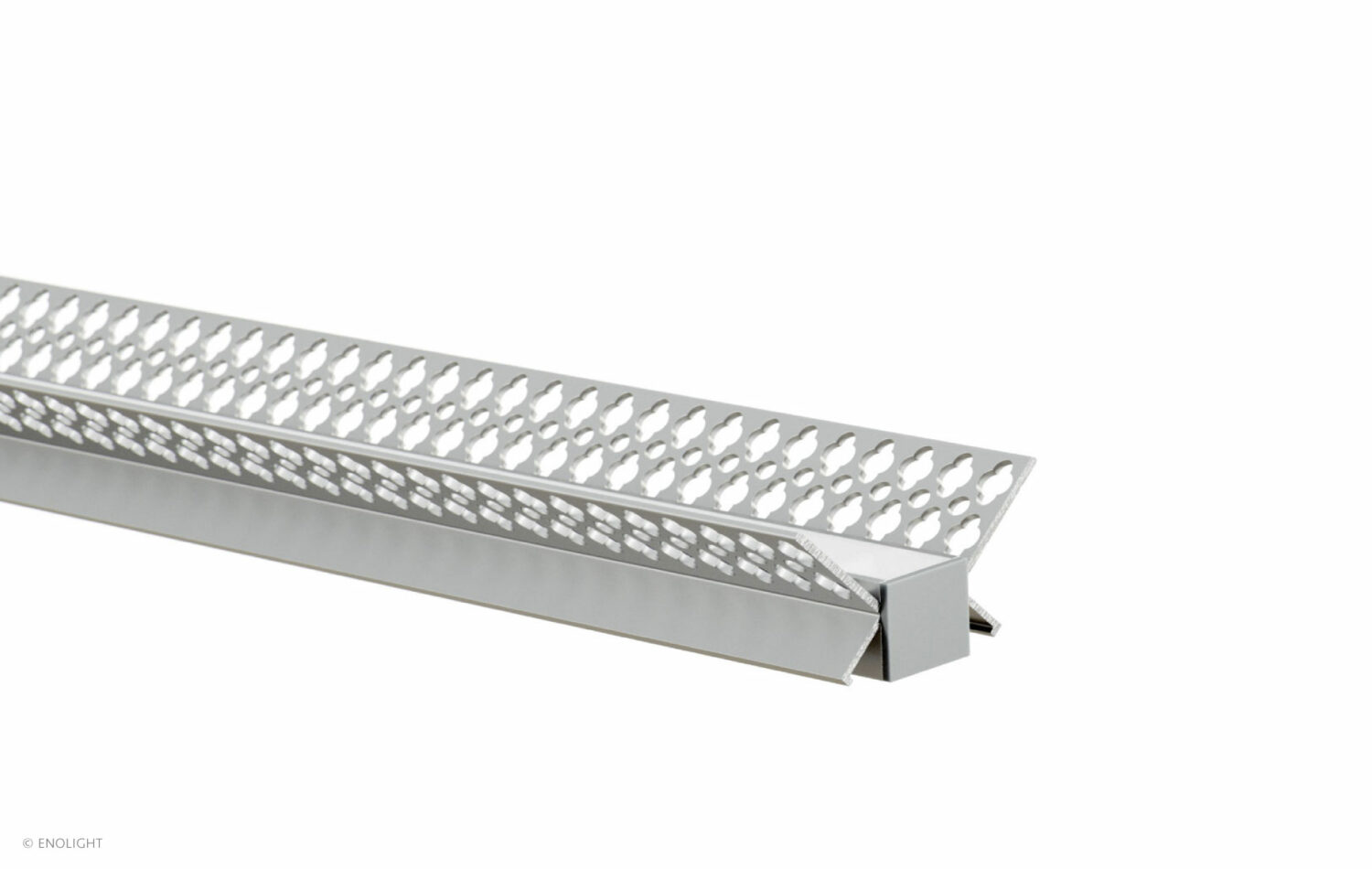

SPK4615F is a recessed linear profile made of extruded aluminum housing with a protective silver anodized finish, capped with a flush frosted lens.

This linear LED luminaire is designed to produce a uniform distribution of diffused light in drywall platforms. SPK4615F is suitable for inside corners and comes in variable lengths up to 8 feet.

Spark series are complemented with energy-efficient, dot-free, and dimmable LED producing high color rendering index lighting. The bright white LED light source with CCT options from 2200K to 6000K provides lighting that fits the design concept.

The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. SPK4615F channels are perfect fit for indoor applications in residential and commercial spaces to produce ambient or decorative illumination.

EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5 years warranty.

Electrical

Input

24 Volt DC
5 W/ft – 16 W/m

Power Supply

Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage

Operating Temp

-31°F to + 113°F
-35°C to + 45°C

Certification

U.S./Canada UL approved Type IC Recessed

Control

Options

Combination of remote and wireless wall dimmers
Smart light control mobile app

blank blank  blank

Multi-zone

Individual and zone options for color temperature and brightness control

Dimming

Brightness and cool to warm light mode with memory saving options

Physical

Dimension

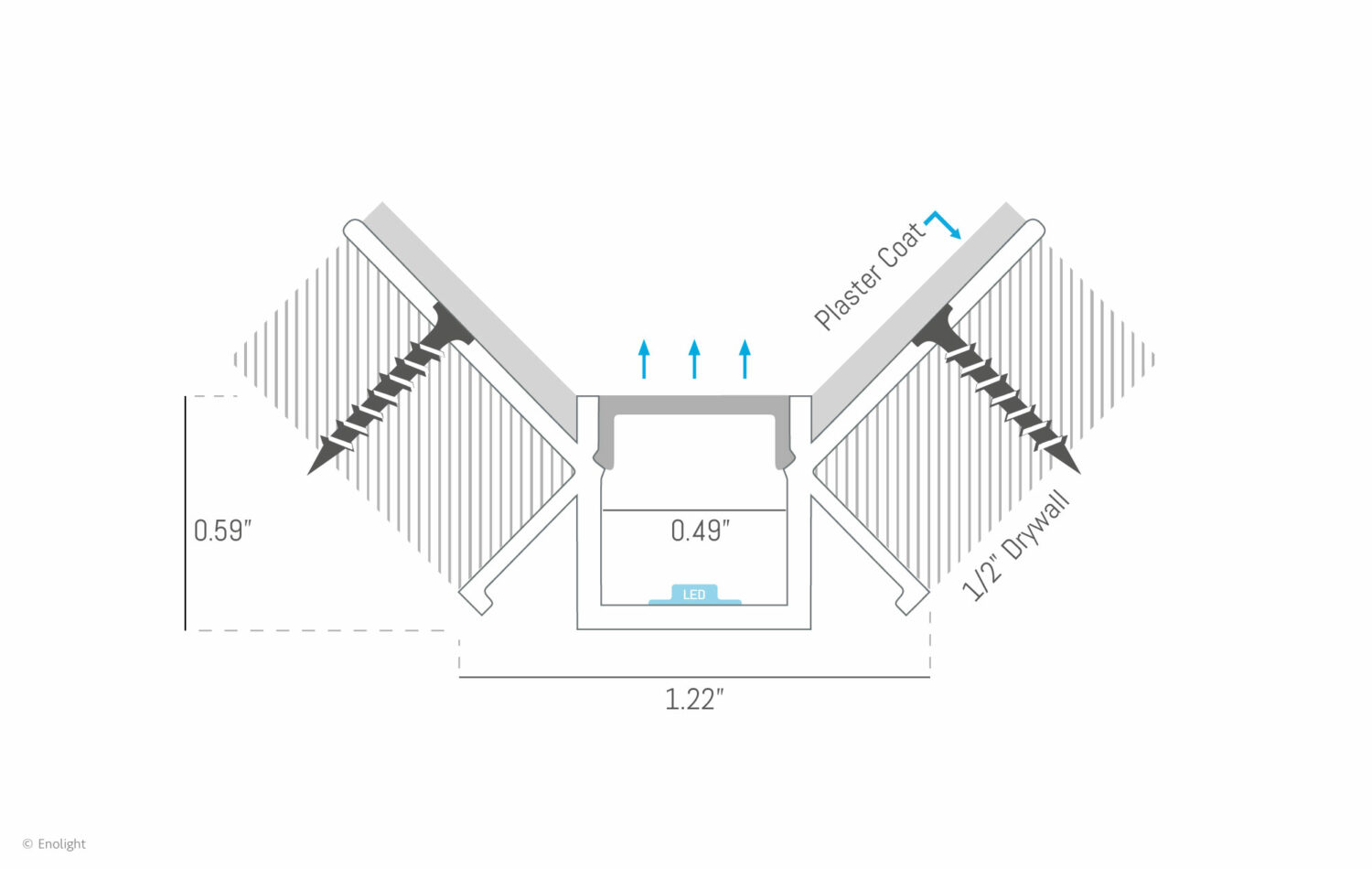

WxH: 1.8in x 1.02in – 46mm x 26mm
Length: Up to 8 ft – 2.5 m
Weight: 0.27 lbs/ft – 0.4 kg/m

Finish

Silver anodized aluminum, black, or white finish

Field

Damp and dry applications

Mounting

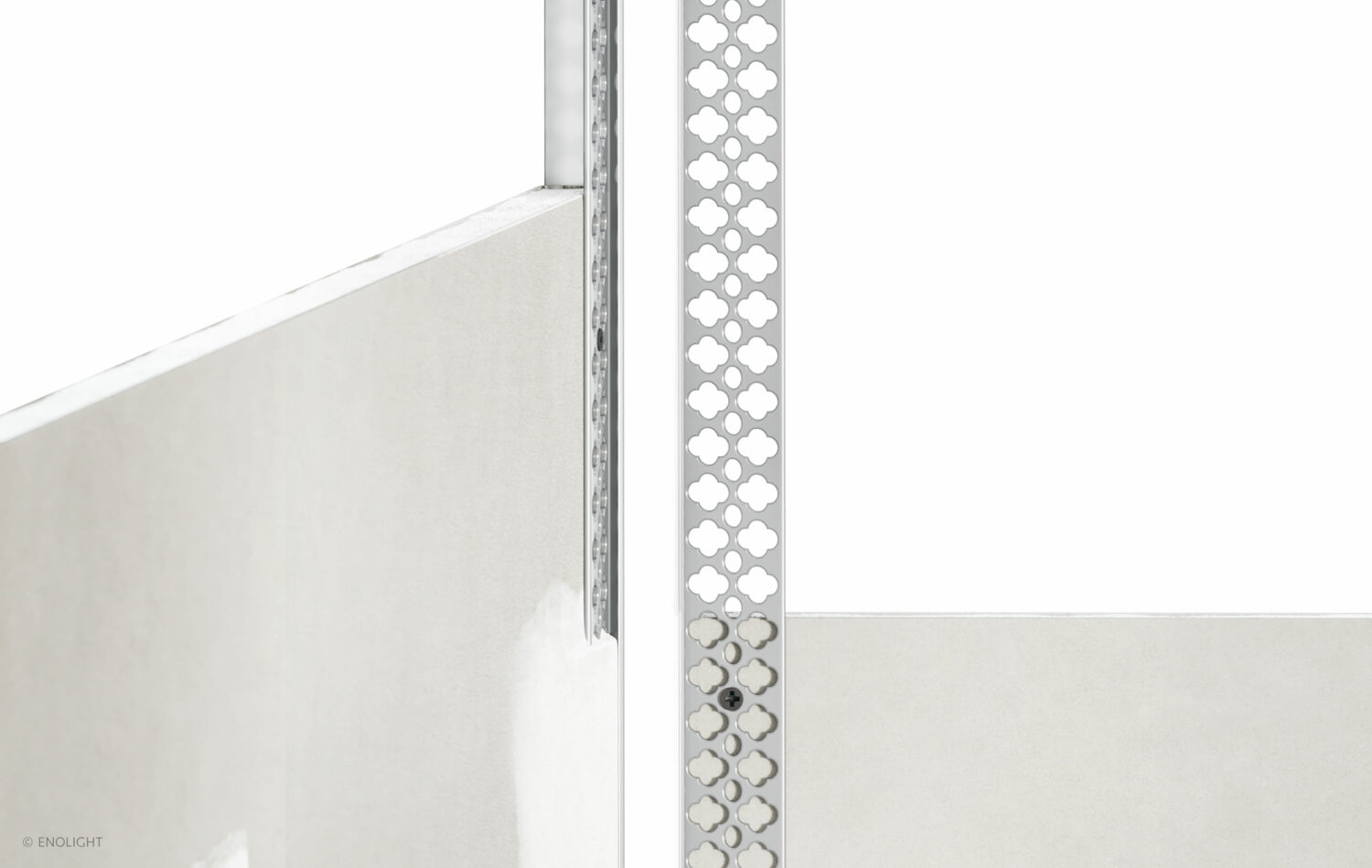

Recessed in drywall inside corners

blank

Light

LED Type

Single white, tunable white, RGB, Circadian BIOS SkyBlue

CCT

3000K 3500K 4000K 4500K 5000K 5500K

blank

CRI Varieties

97 full spectrum natural color with bright contrast

Brightness

400 Lm/ft – 1400 Lm/m

Life time

50,000 hours

Warranty

5 years warranty
