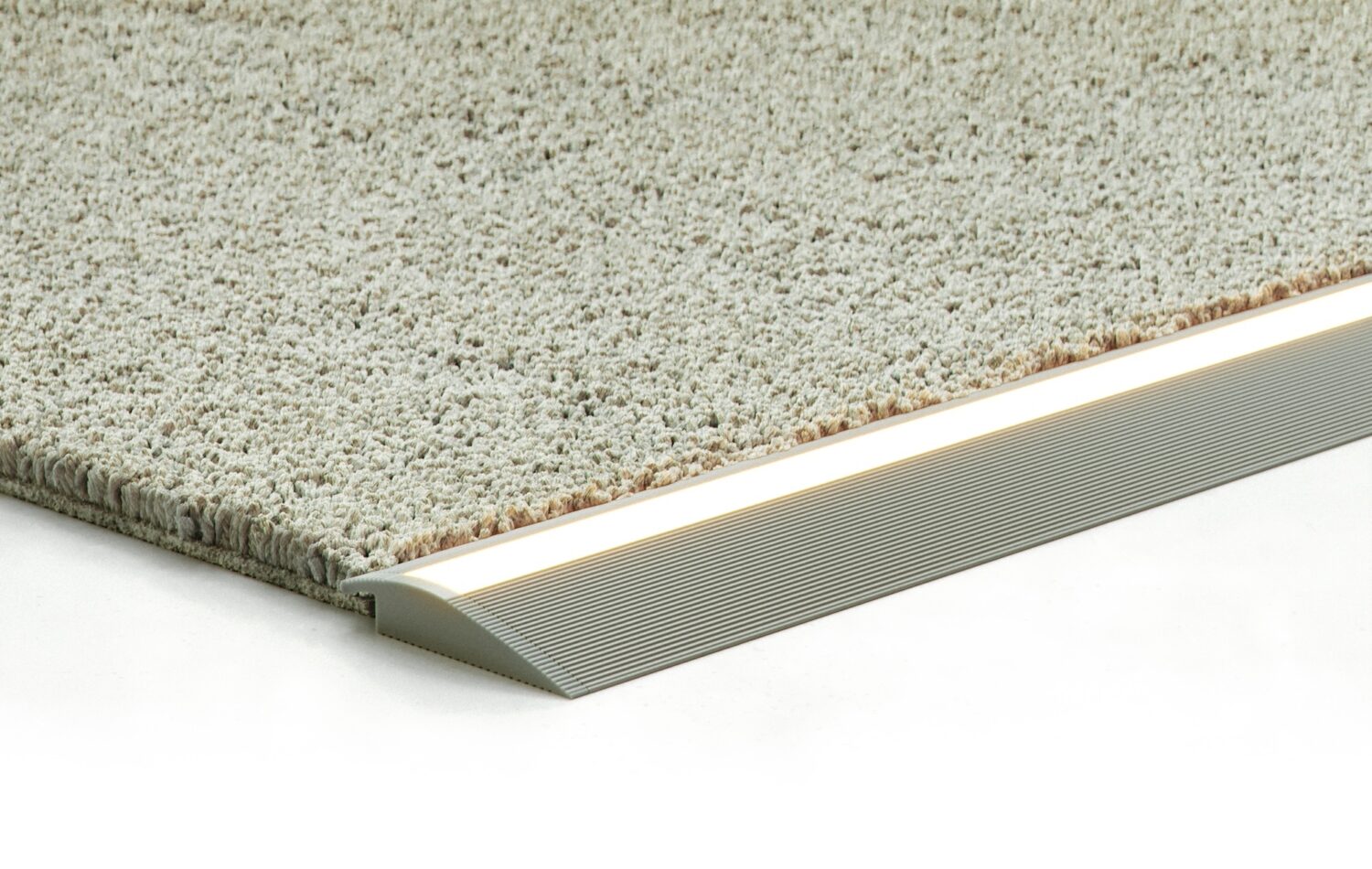

TIE5711C Floor Transition Linear Light with Curved Frosted Lens
TIE5711C is a floor transition linear light with anti-slip treads that smooth out height differences between carpet, hardwood, or tile floors, ensuring safer, easier walking. Available in silver, black, or custom finishes and emits uniform diffused light through a 1/2″ curved frosted lens. A long lens roll is available for seamless installations.
Characteristics
TIE5711C is a floor transition linear light with anti-slip treads that smooth out height differences between carpet, hardwood, or tile floors, ensuring safer, easier walking. Available in silver, black, or custom finishes and emits uniform diffused light through a 1/2" curved frosted lens. A long lens roll is available for seamless installations.
Electrical
Input
24 Volt DC
5 W/ft – 16 W/m
Power Supply
Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage
Operating Temp
-31°F to + 113°F
-35°C to + 45°C
Certification
U.S./Canada UL approved Type IC Recessed
Control
Options
Combination of remote and wireless wall dimmers
Smart light control mobile app
  Â
Multi-zone
Individual and zone options for color temperature and brightness control
Dimming
Brightness and cool to warm light mode with memory saving options
Physical
Dimension

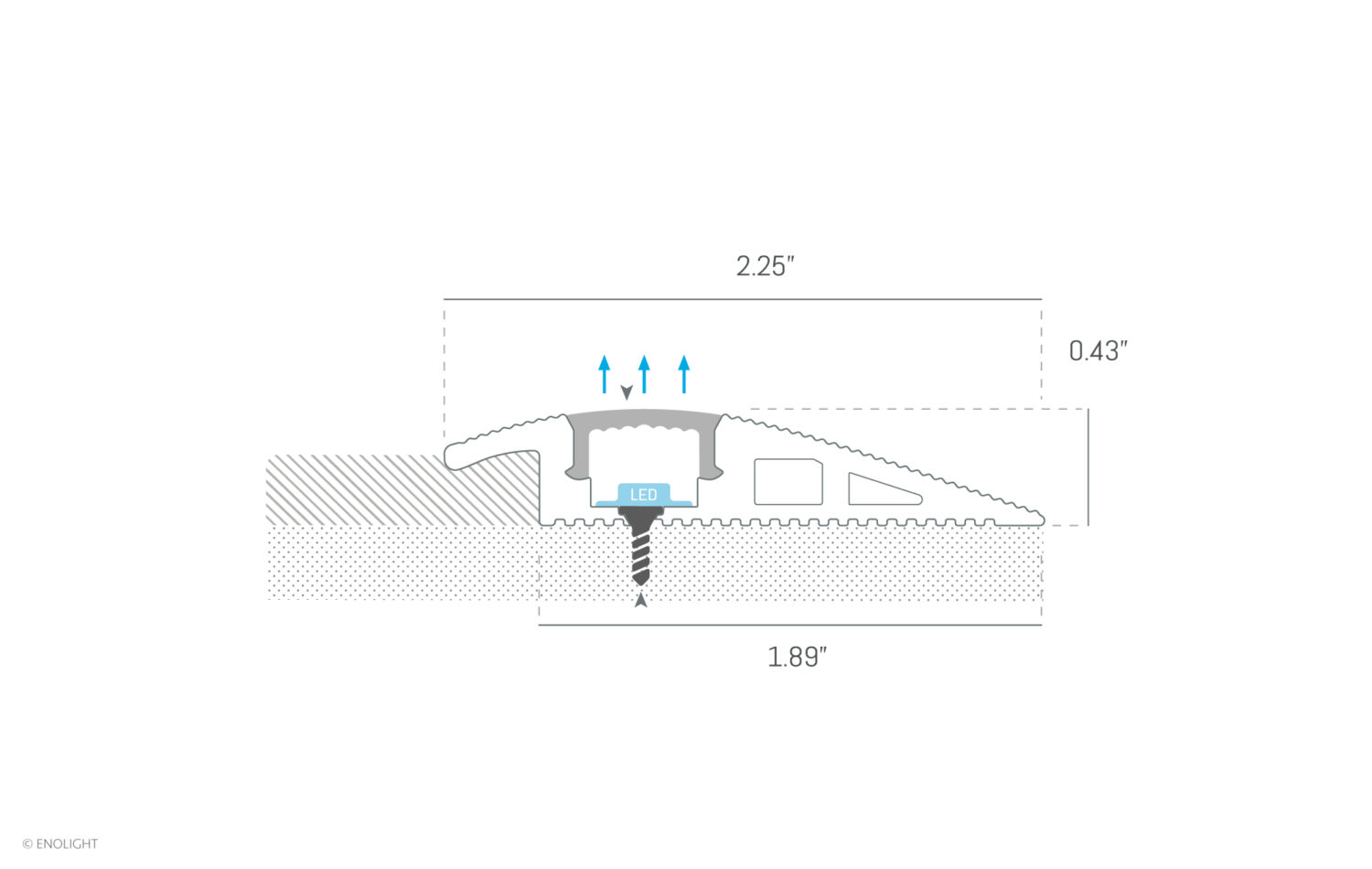

WxH: 2.25 in x 0.43 in – 57mm x 11mm
Length: Up to 8 ft – 2.44 m
Weight: 0.38 lbs/ft – 0.56 kg/m
Finish
Mill, black, white, Silver anodized finish
Field
Damp and dry applications
Mounting
Recessed in drywall, wall and ceiling boards
   Â
Light
LED Type
Single white, tunable white, Circadian BIOS SkyBlue
CCT
3000K 3500K 4000K 4500K 5000K 5500K
CRIÂ Varieties
97 full spectrum natural color with bright contrast
Brightness
400 Lm/ft – 1400 Lm/m
Life time
50,000 hours
Warranty
5 years warranty
