TIE5711C Floor Transition Linear Light with Curved Frosted Lens

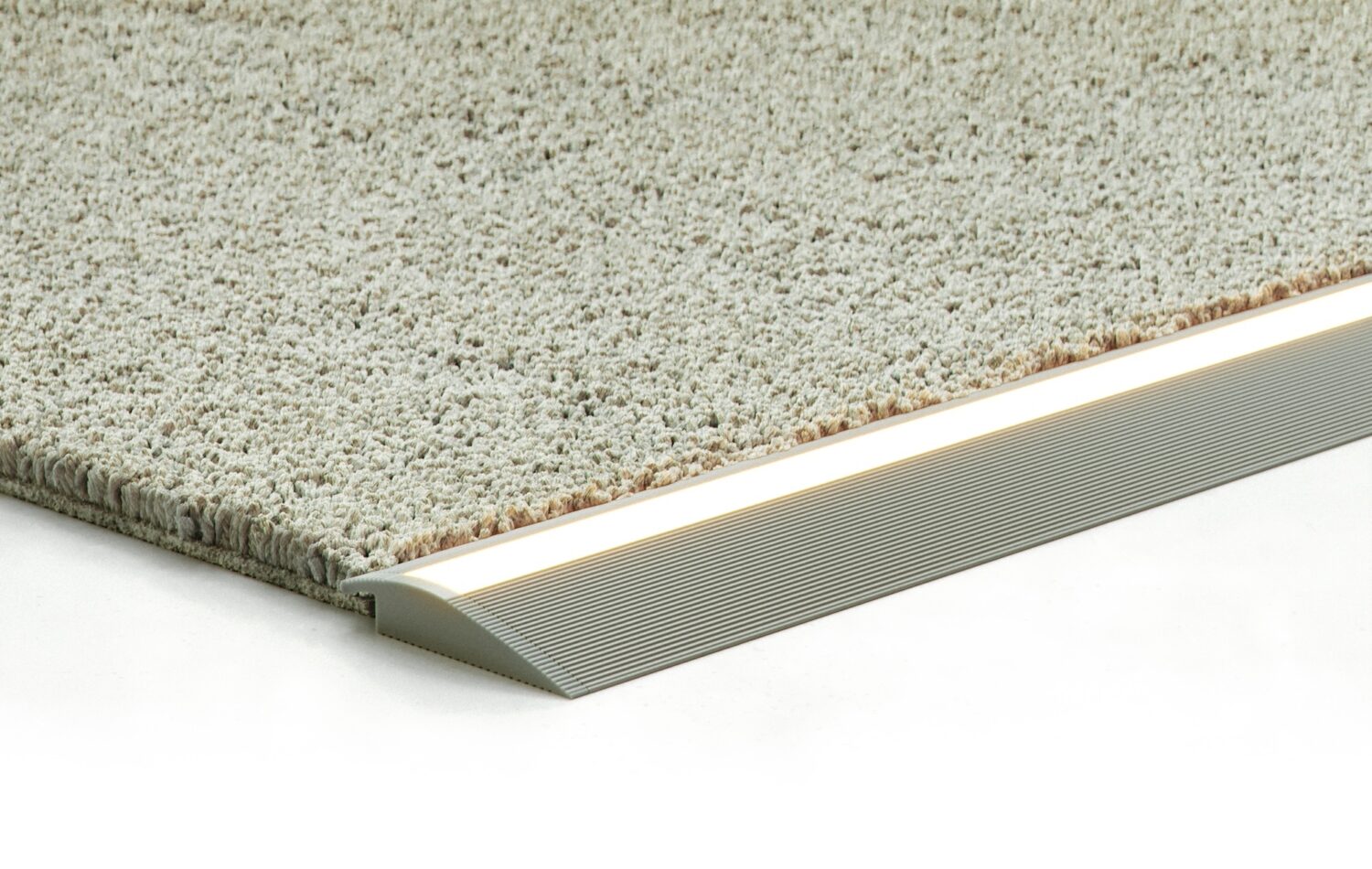

TIE5711C is a floor transition linear light with anti-slip treads that smooth out height differences between carpet, hardwood, or tile floors, ensuring safer, easier walking. Available in silver, black, or custom finishes and emits uniform diffused light through a 1/2″ curved frosted lens. A long lens roll is available for seamless installations.
Characteristics
TIE5711C is a floor transition linear light with anti-slip treads that smooth out height differences between carpet, hardwood, or tile floors, ensuring safer, easier walking. Available in silver, black, or custom finishes and emits uniform diffused light through a 1/2" curved frosted lens. A long lens roll is available for seamless installations.
Electrical
Input
24 Volt DC
5 W/ft – 16 W/m
Power Supply
Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage
Operating Temp
-31°F to + 113°F
-35°C to + 45°C
Certification
U.S./Canada UL approved Type IC Recessed
Control
Options
Combination of remote and wireless wall dimmers
Smart light control mobile app
Multi-zone
Individual and zone options for color temperature and brightness control
Dimming
Brightness and cool to warm light mode with memory saving options
Physical
Dimension

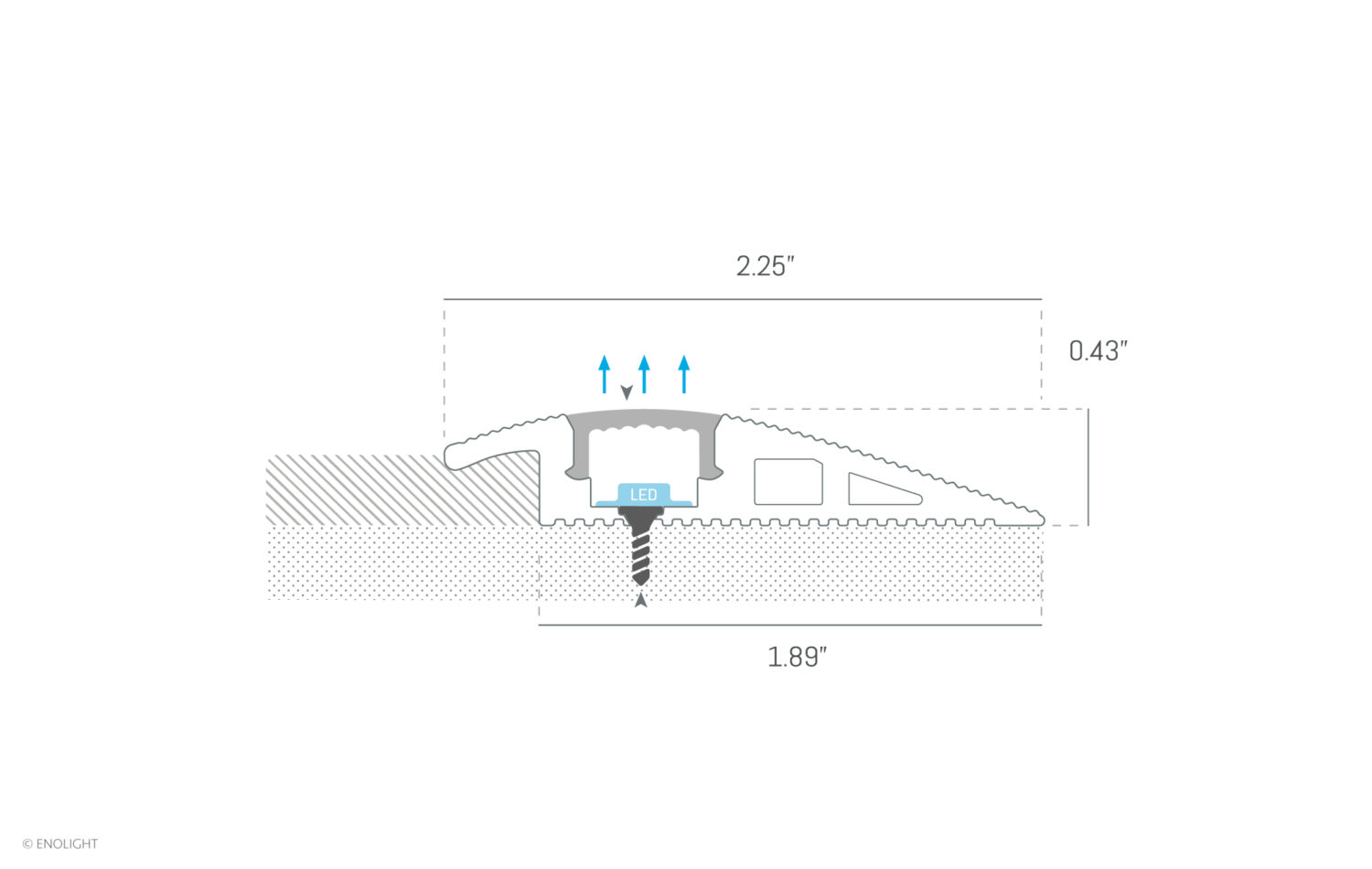

WxH: 2.25 in x 0.43 in – 57mm x 11mm
Length: Up to 8 ft – 2.44 m
Weight: 0.38 lbs/ft – 0.56 kg/m
Finish
Mill, black, white, Silver anodized finish
Field
Damp and dry applications
Mounting
Recessed in drywall, wall and ceiling boards
Light
LED Type
Single white, tunable white, Circadian BIOS SkyBlue
CCT
3000K 3500K 4000K 4500K 5000K 5500K
CRI Varieties
97 full spectrum natural color with bright contrast
Brightness
400 Lm/ft – 1400 Lm/m
Life time
50,000 hours
Warranty
5 years warranty
