CAB2011F
CAB2011F Ultra Slim Recessed Linear Trim Light with 1/4″ Flex Frosted Lens
CAB2011F is designed to produce a uniform distribution of diffused light in wooden platforms. CAB2011F has a narrow base with small trim and is suitable for closet, under cabinet, stair nosing and wall unit linear light designs. This channel comes in variable lengths up to 10 feet.
Characteristics
CAB2011F is a recessed light made of extruded aluminum housing, capped with a flexible flush frosted lens.
This linear LED luminaire is designed to produce a uniform distribution of diffused light in wooden platforms. CAB2011F has a narrow base with small trim and is suitable for closet, under cabinet, stair nosing and wall unit linear light designs. This channel comes in variable lengths up to 10 feet.
Cab series are complemented with dimmable, energy-efficient, dot-free LED, producing high color rendering index lighting. The bright white LED light source with CCT options from 2200K to 5000K provides the environment with desired lighting that fits the design concept.
The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. CAB2011F is a perfect fit for use in residential and commercial spaces to produce ambient or decorative illumination.
EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5-year warranty.
Electrical
Input
24 Volt DC
3.6 W/ft – 12 W/m
Power Supply
Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage
Operating Temp
-4°F to +113°F
-20°C to +45°C
Certification
U.S./Canada UL approved Type IC Recessed
Control
Options
Combination of remote and wireless wall dimmers
Smart light control mobile app
Multi-zone
Individual and zone options for color temperature and brightness control
Dimming
Brightness and cool to warm light mode with memory saving options
Physical
Dimension

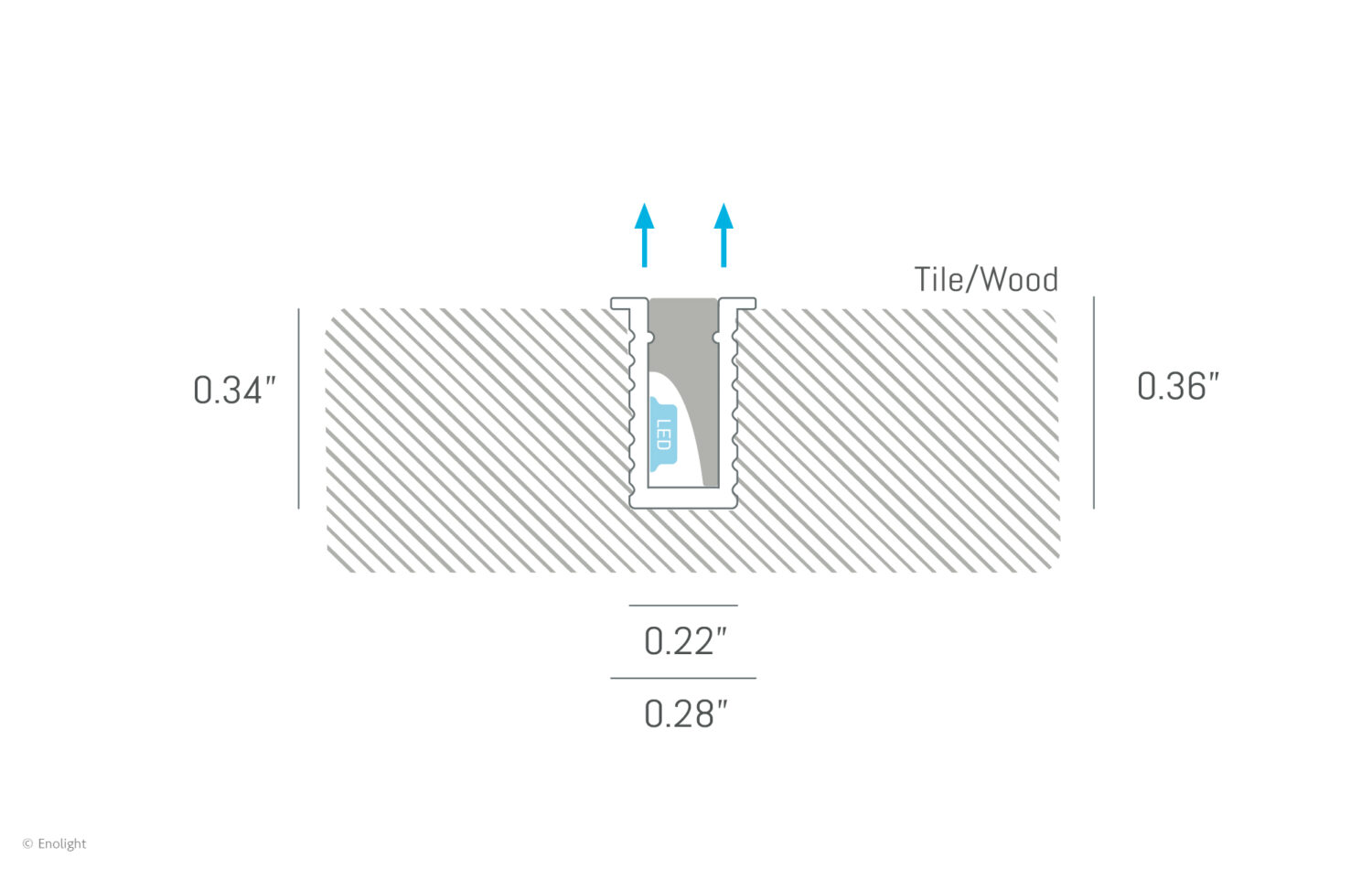

WxH: 0.28 in x 0.36 in - 7mm x 9mm
Length: Up to 10 ft - 3 m
Weight: 0.04 lbs/ft - 0.06 kg/m
Finish
Mill, black, white, silver anodized finish
Field
Damp and dry applications
Mounting
Recessed in drywall, wall and ceiling boards
Light
LED Type
Single white, tunable white, Circadian BIOS SkyBlue
CCT
2200K 2700K 3000K 3500K 4000K 5000K
CRI Varieties
97 full spectrum natural color with bright contrast
Brightness
200 Lm/ft - 700 Lm/m
Lifetime
50,000 hours
Warranty
5-year warranty
