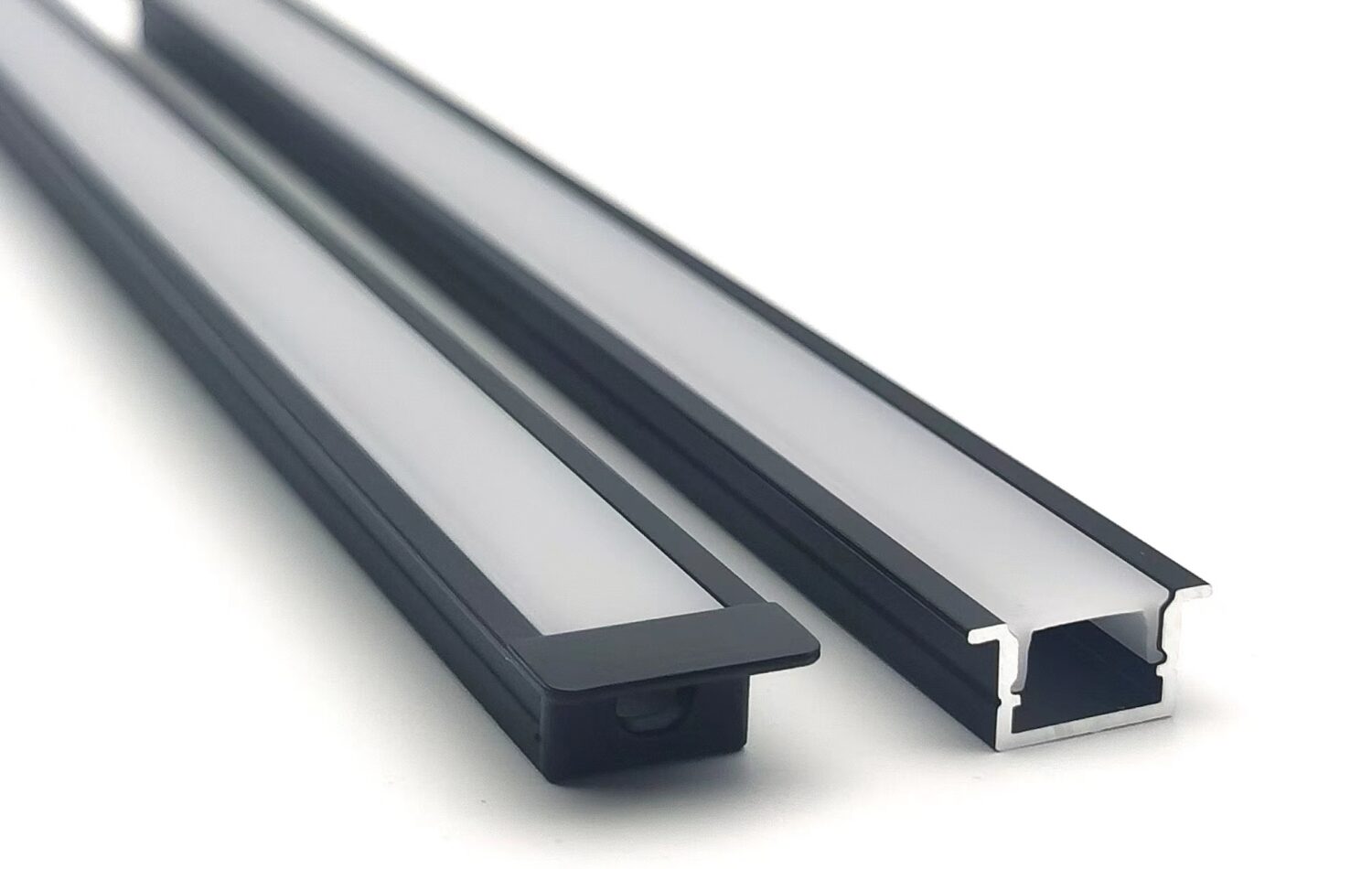

HYN1608F Recessed Linear Trim Light with Flat Frosted Lens
HYN1608F is an ultra-slim linear light featuring small side wings for a seamless recessed finish on any surface. Available in silver and black anodized finishes, it provides uniform distribution of diffused light through a 1/2-inch white or black frosted lens. Custom lengths and finishes are available to meet specific project requirements.
Characteristics
HYN1608F is an ultra-slim linear light featuring small side wings for a seamless recessed finish on any surface. Available in silver and black anodized finishes, it provides uniform distribution of diffused light through a 1/2-inch white or black frosted lens. Custom lengths and finishes are available to meet specific project requirements.
Electrical
Input
24 Volt DC
2.4 W/ft – 8 W/m
Power Supply
Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage
Operating Temp
-31°F to + 113°F
-35°C to + 45°C
Certification
U.S./Canada UL approved Type IC Recessed
Control
Options
Combination of remote and wireless wall dimmers
Smart light control mobile app
Multi-zone
Individual and zone options for color temperature and brightness control
Dimming
Brightness and cool to warm light mode with memory saving options
Physical
Dimension

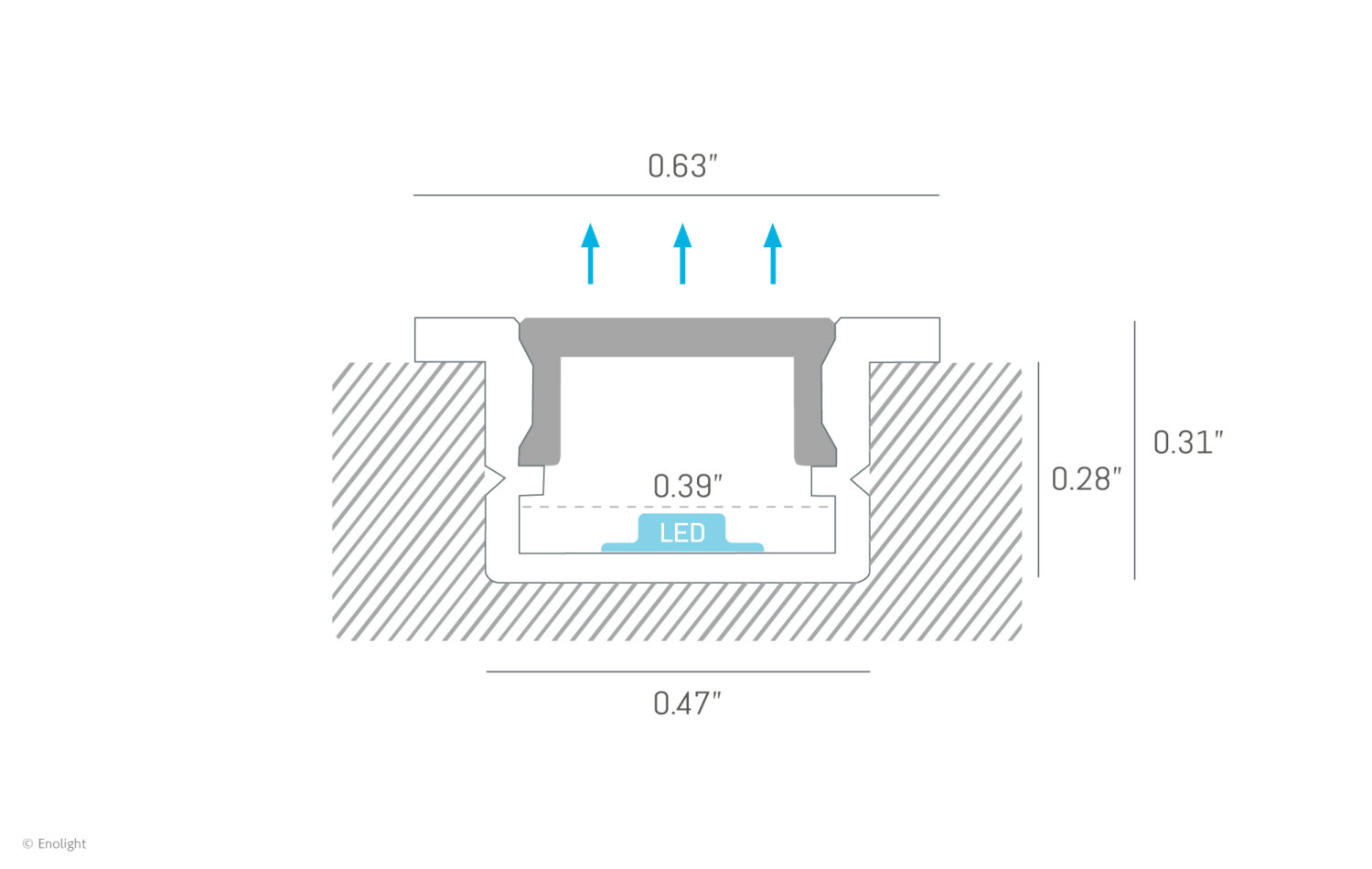

WxH: 0.63 in x 0.31 in – 16mm x 8mm
Length: Up to 8 ft – 2.44 m
Weight: 0.06 lbs/ft – 0.09 kg/m
Finish
Mill, black, white, Silver anodized finish
Field
Damp and dry applications
Mounting
Recessed in drywall, wall and ceiling boards
Light
LED Type
Single white, tunable white, Circadian BIOS SkyBlue
CCT
3000K 3500K 4000K 4500K 5000K 5500K
CRI Varieties
97 full spectrum natural color with bright contrast
Brightness
200 Lm/ft – 700 Lm/m
Life time
50,000 hours
Warranty
5 years warranty
