HYN1913F
HYN1913F Waterproof Shower Linear Light with 3/4″ Sand Texture Frosted Lens

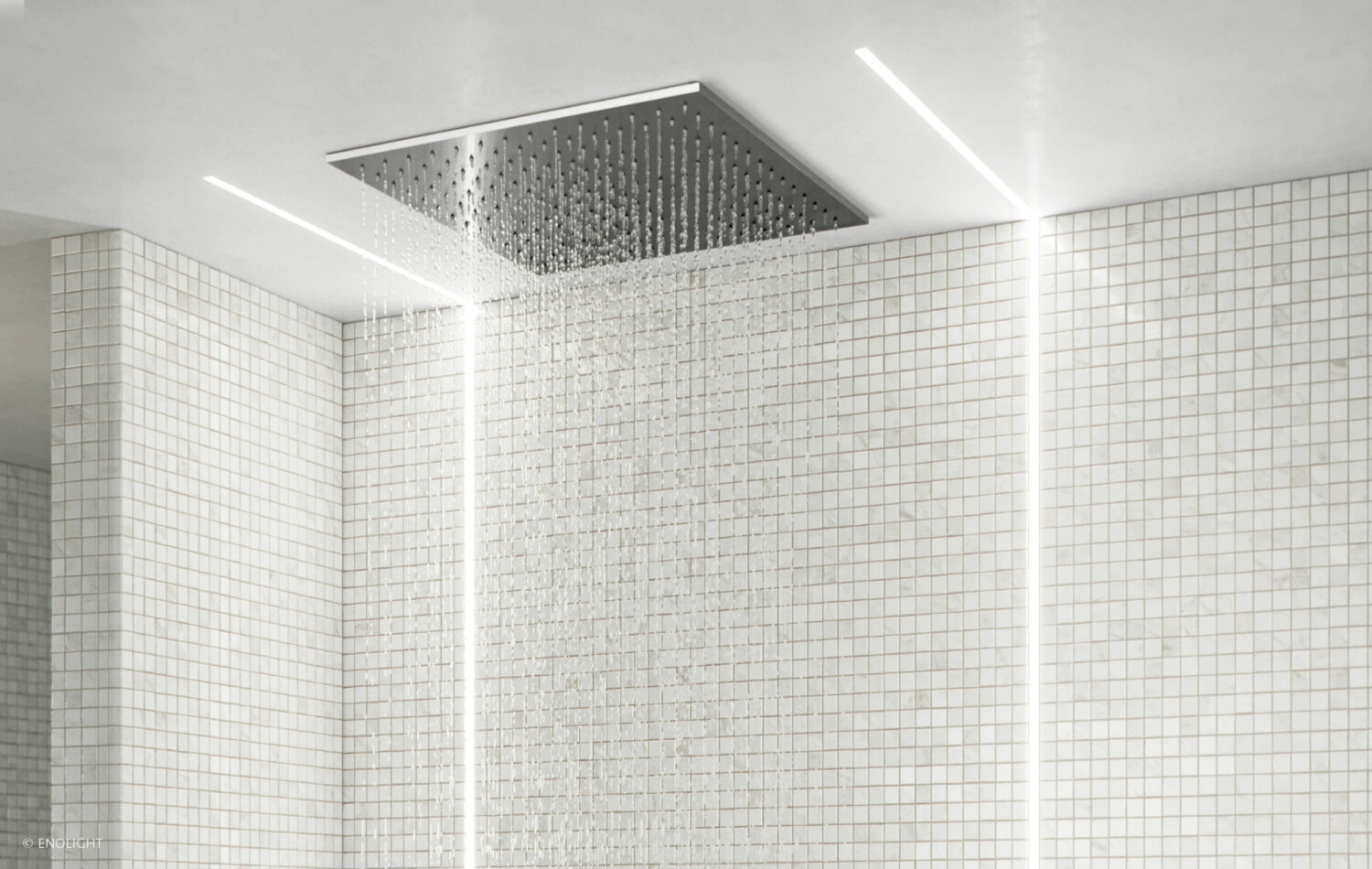

HYN1913F is designed to produce a uniform distribution of diffused light in tile, stone, and wooden board platforms. This linear LED luminaire has a waterproof construct and is suitable for wall, ceiling, and under coping in wet environments such as pools and showers.
Characteristics

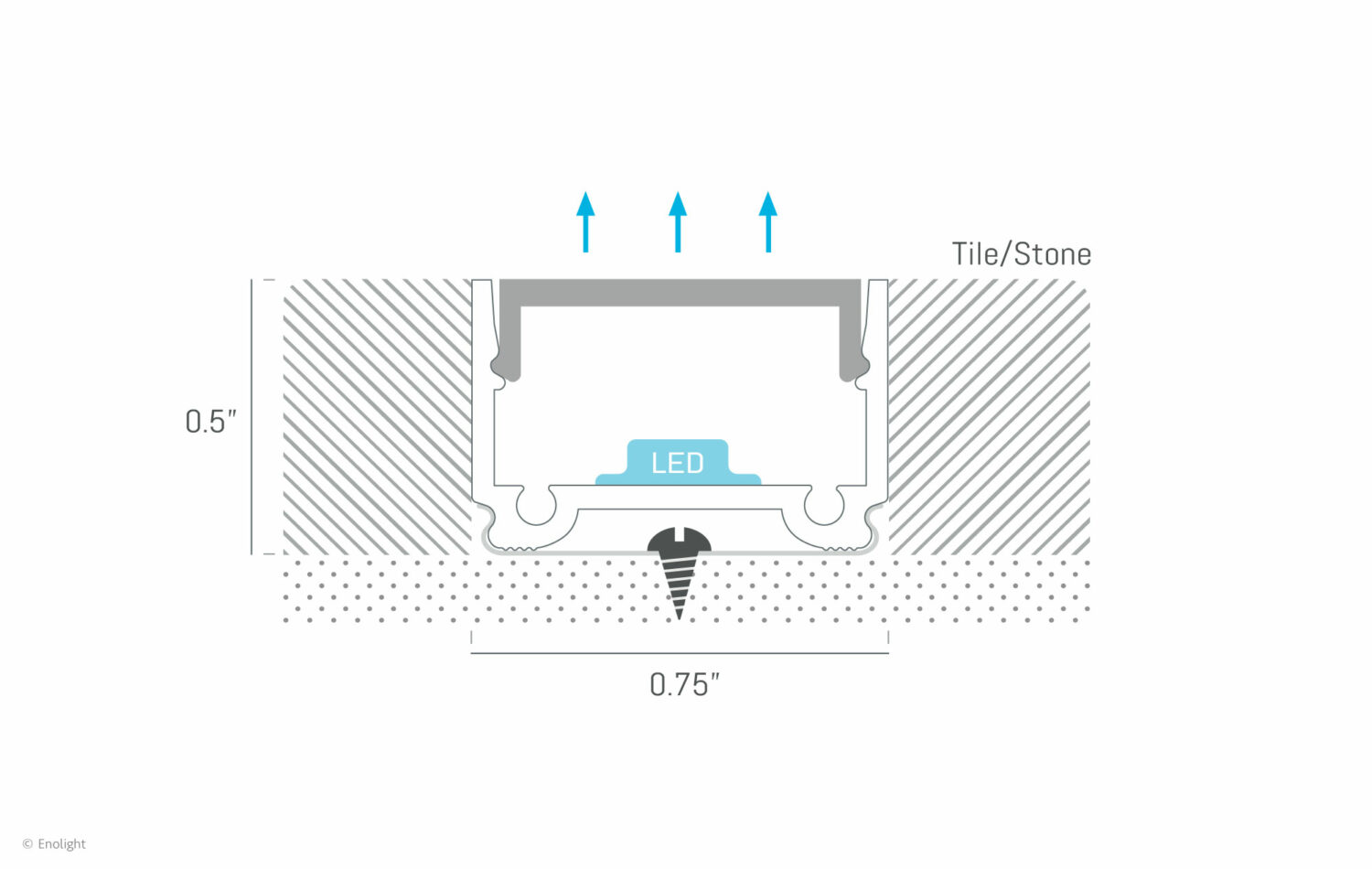

HYN1913F is a recessed surface linear profile made of extruded aluminum housing, capped with 3/4 inch flat frosted lens. This linear LED luminaire is designed to produce a uniform distribution of diffused light in tile, stone, and wooden board platforms. HYN1913F has a waterproof construct and is suitable for wall, ceiling, and under coping in wet environments such as pools and showers. The channel may be secured on a flat or curved surface using mounting clips and comes in variable lengths up to 18 feet.
Hyphen series are complemented with dimmable, energy-efficient, dot-free LED, producing high color rendering index lighting. The bright white LED light source with CCT options from 2700K to 6500K provides the environment with desired lighting that fits the design concept.

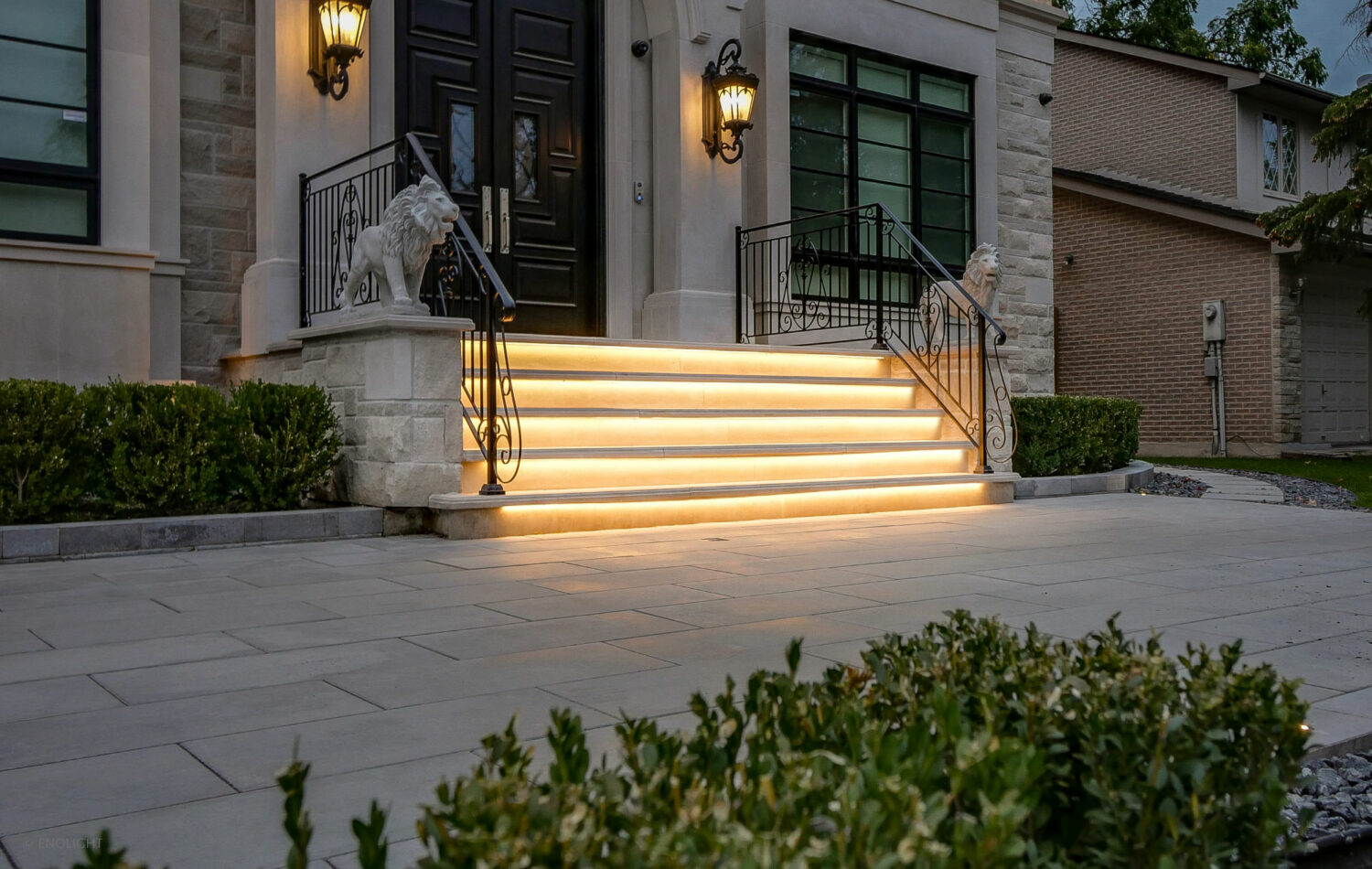

The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. HYN1913F is a perfect fit for use in indoor and outdoor applications to produce ambient or decorative illumination.
EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5-year warranty.
Electrical
Input
24 Volt DC
5 W/ft – 16 W/m
Power Supply
Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage
Operating Temp
-4°F to +113°F
-20°C to +45°C
Certification
U.S./Canada UL approved Type IC Recessed
Control
Options
Combination of remote and wireless wall dimmers
Smart light control mobile app
Multi-zone
Individual and zone options for color temperature and brightness control
Dimming
Brightness and cool to warm light mode with memory saving options
Physical
Dimension
WxH: 0.75 in x 0.5 in - 19mm x 13mm
Length: Up to 18 ft - 5.5 m
Weight: 0.09 lbs/ft - 0.13 kg/m
Finish
Mill, black, white, silver anodized finish
Field
Indoor and outdoor IP65
Mounting
Recessed in wood, stone, and tile wet areas
Light
LED Type
Single white, tunable white, Circadian BIOS SkyBlue
CCT
2700K 3000K 3500K 4000K 5000K, tunable 2700K to 6500K
CRI Varieties
97 full spectrum natural color with bright contrast
Brightness
400 Lm/ft - 1400 Lm/m
Lifetime
50,000 hours
Warranty
5-year warranty
