HYN2002C
HYN2002C Trimless Recessed Surface Linear Light with Curved Frosted Lens
HYN2002C is a wide, trimless linear light ideal for flush recessed or surface-mounted installations on cabinets, closets, and wood slat panels. It provides bright, diffused light through a 0.9-inch curved frosted lens, perfect for primary or decorative illumination. Custom lengths with long lens rolls are available for continuous lighting designs.
Characteristics
HYN2002C is a wide, trimless linear light ideal for flush recessed or surface-mounted installations on cabinets, closets, and wood slat panels. It provides bright, diffused light through a 0.9-inch curved frosted lens, perfect for primary or decorative illumination. Custom lengths with long lens rolls are available for continuous lighting designs.
Electrical
Input
24 Volt DC
5 W/ft – 16 W/m
Power Supply
Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage
Operating Temp
-4°F to +113°F
-20°C to +45°C
Certification
U.S./Canada UL approved Type IC Recessed
Control
Options
Combination of remote and wireless wall dimmers
Smart light control mobile app
Multi-zone
Individual and zone options for color temperature and brightness control
Dimming
Brightness and cool to warm light mode with memory saving options
Physical

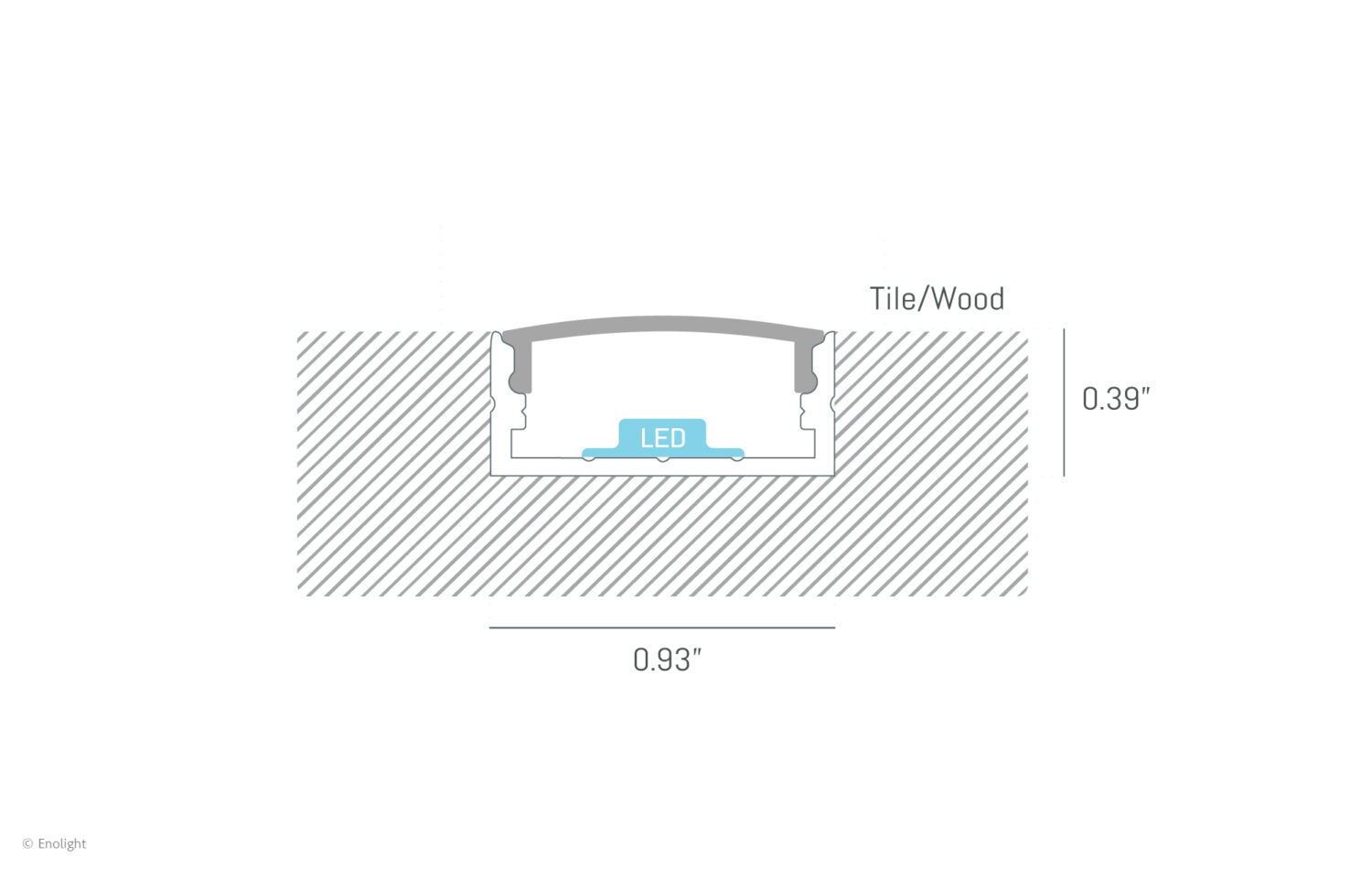

Dimension
WxH: 0.93 in x 0.39 in - 24mm x 10mm
Length: Up to 10 ft - 3 m
Weight: 0.11 lbs/ft - 0.17 kg/m
Finish
Mill, black, white, silver anodized finish
Field
Damp and dry applications
Mounting
Recessed in drywall, wall and ceiling boards
Light
LED Type
Single white, tunable white, Circadian BIOS SkyBlue
CCT
2700K 3000K 3500K 4000K 5000K, tunable 2700K to 6500K
CRI Varieties
97 full spectrum natural color with bright contrast
Brightness
400 Lm/ft - 1400 Lm/m
Lifetime
50,000 hours
Warranty
5-year warranty
