Characteristics
STP5080F is a linear stair-nosing profile made of extruded aluminum housing with a protective silver anodized finish. The light channel projects downward and is capped with a flush frosted lens.

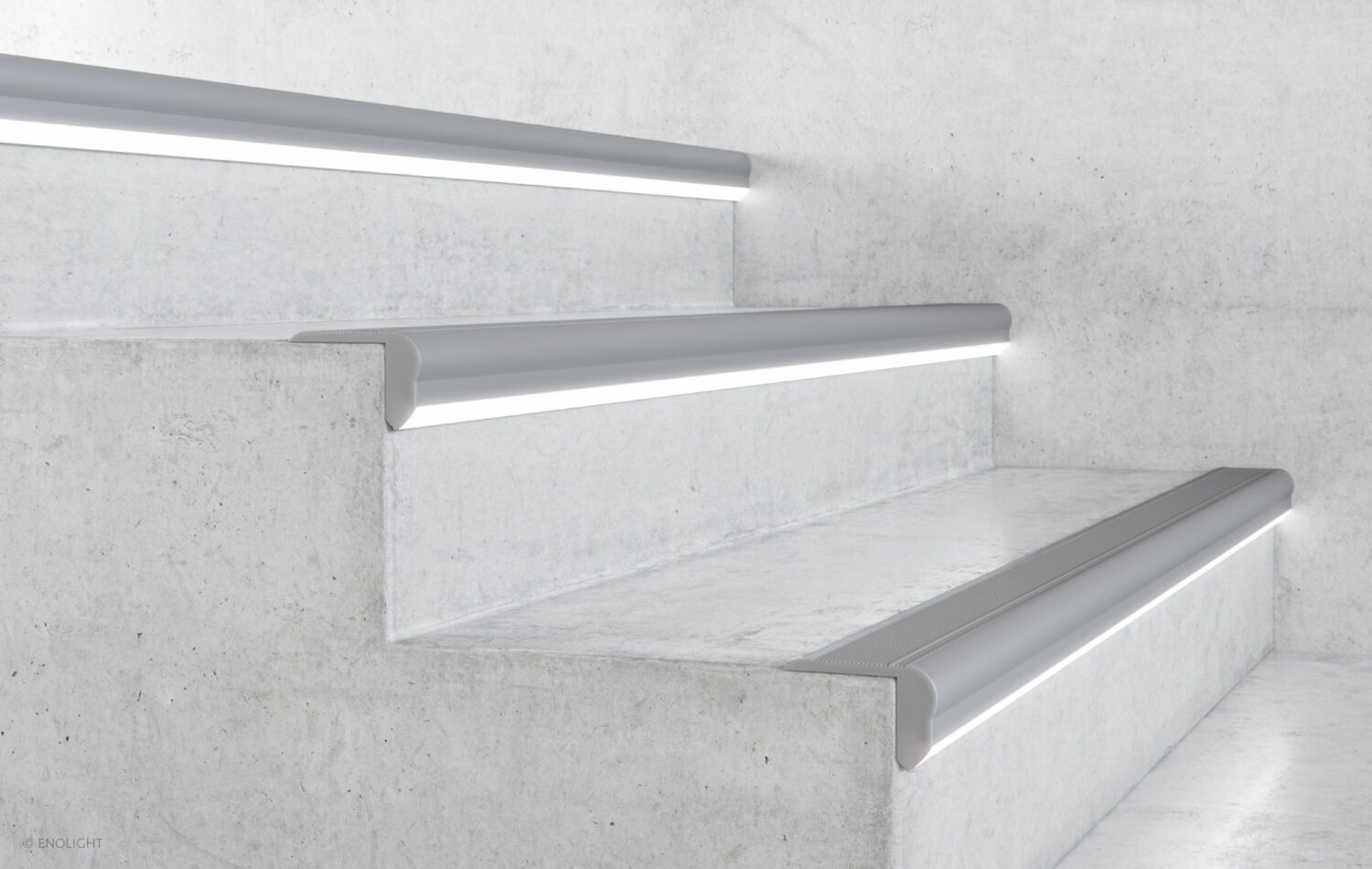

This linear LED luminaire is designed to produce a uniform distribution of diffused light in stair applications. STP5080F has an anti-slip stair nosing construct and comes in variable lengths up to 10 feet.
Step series are complemented with energy-efficient, dot-free, dimmable LED, producing high color rendering index lighting. The bright white LED light source with CCT options from 2700K to 6500K provides the environment with desired lighting that fits the design concept.
The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. STP5080F is a perfect fit for use in residential and commercial spaces for damp and dry applications to produce ambient or decorative illumination.
EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5-year warranty.
Electrical
Input
24 Volt DC
5 W/ft – 16 W/m
Power Supply
Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage
Operating Temp
-4°F to +113°F
-20°C to +45°C
Certification
U.S./Canada UL approved
Control
Options
Combination of remote and wireless wall dimmers
Smart light control mobile app
Multi-zone
Individual and zone options for color temperature and brightness control
Dimming
Brightness and cool to warm light mode with memory saving options
Physical
Dimension

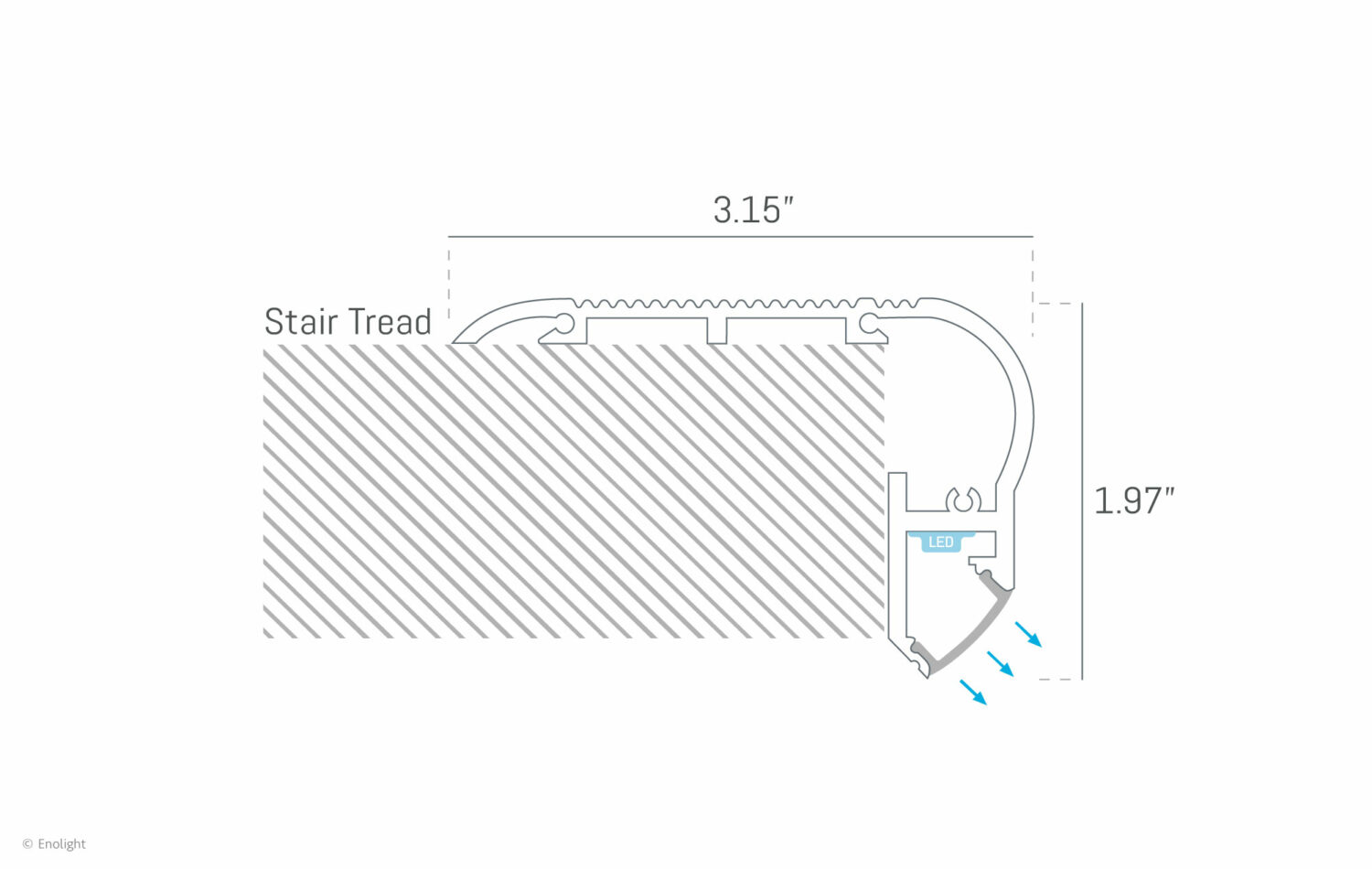

WxH: 3.15 in x 1.97 in - 80mm x 50mm
Length: Up to 10 ft - 3 m
Weight: 0.74 lbs/ft - 1.1 kg/m
Finish
Silver anodized aluminum, black, or white finish
Field
Damp and dry applications
Mounting
Surface-mounted on stair tread nosing
Light
LED Type
Single white, tunable white, Circadian BIOS SkyBlue
CCT
2700K 3000K 3500K 4000K 5000K, tunable 2700K to 6500K
CRI Varieties
97 full spectrum natural color with bright contrast
Brightness
400 Lm/ft - 1400 Lm/m
Lifetime
50,000 hours
Warranty
5-year warranty
