HYN1409F and HYN1913F are the improved versions of shower linear lights replacing the older model HYN1612F. The upgraded models are offered in extended lengths up to 18ft.

HYN1612F Waterproof Shower Linear Light with Flush Frosted Lens

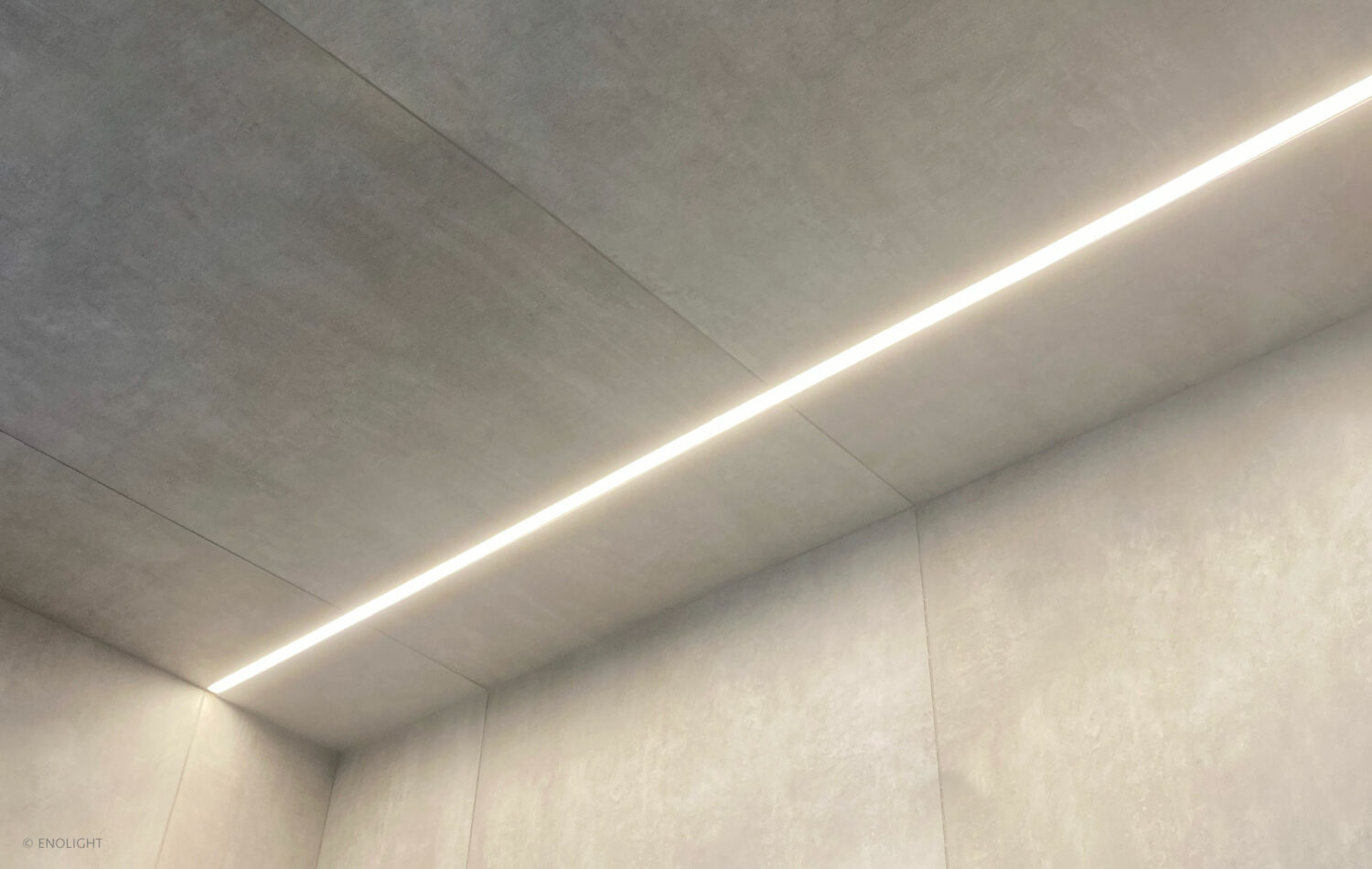

HYN1612F is designed to produce a uniform distribution of diffused light in tile and stone. This linear LED luminaire has a waterproof construct and is suitable for floor, wall, and ceiling linear light designs in wet environments such as bathrooms and showers.

blank
blank
blank
blank
blank

Characteristics

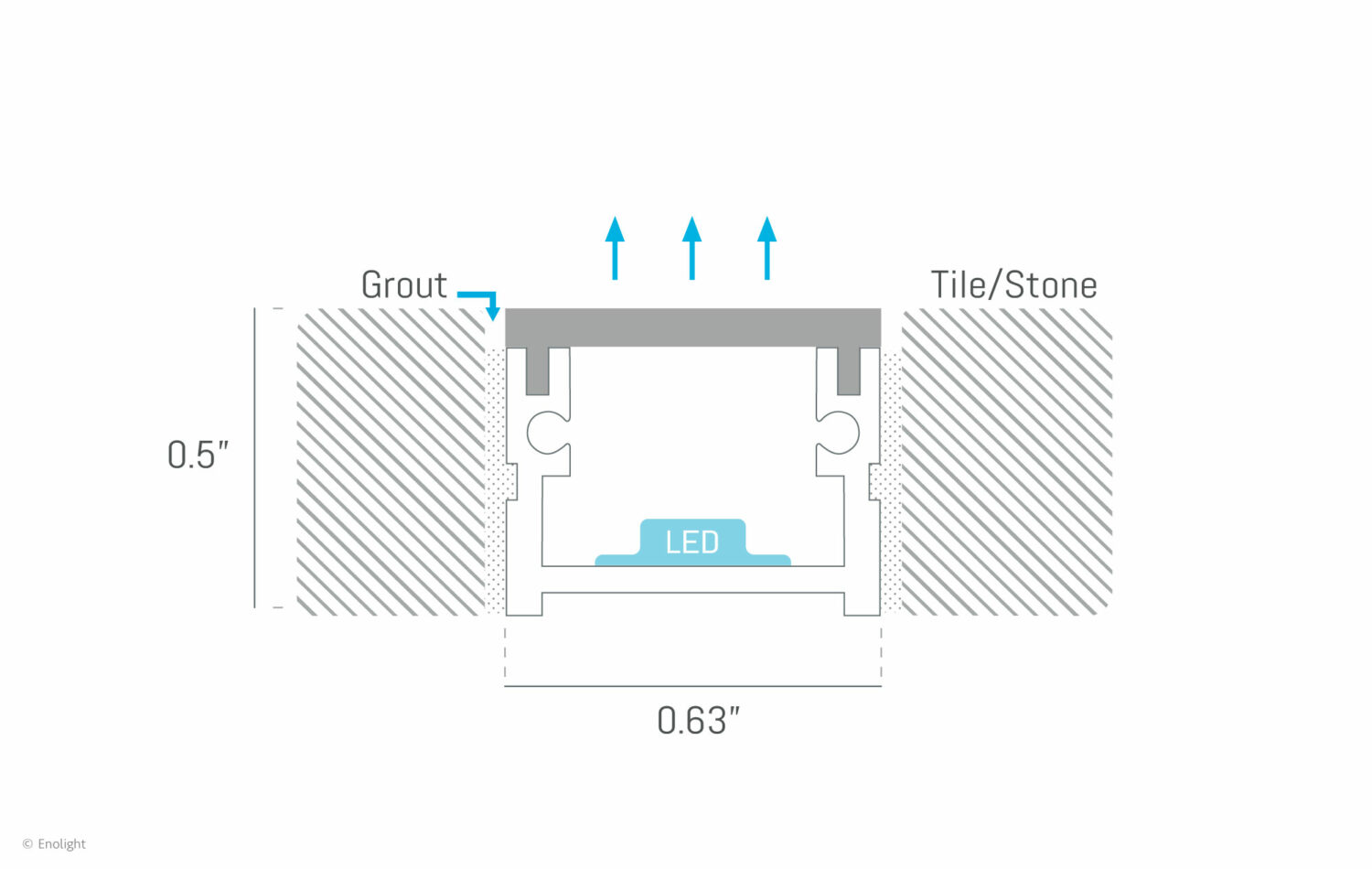

HYN1612F is a recessed linear profile made of extruded aluminum housing with a protective silver anodized finish, capped with a flush frosted lens.

This linear LED luminaire is designed to produce a uniform distribution of diffused light in tile and stone. HYN1612F has a waterproof construct and is suitable for floor, wall, and ceiling linear light designs in wet environments such as bathrooms and showers. This channel comes in variable lengths up to 8 feet.

EnoLight Hyphen series are complemented with dimmable, energy-efficient, and dot-free LED producing high color rendering index lighting. The bright white LED light source with CCT options from 2200K to 6000K provides lighting that fits the design concept.

The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. HYN1612F channels are perfect fit for indoor-outdoor applications in residential and commercial spaces to produce ambient or decorative illumination.

EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5 years warranty.

Electrical

Input

24 Volt DC
5 W/ft – 16 W/m

Power Supply

Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage

Operating Temp

-31°F to + 113°F
-35°C to + 45°C

Certification

U.S./Canada UL approved Type IC Recessed

Control

Options

Combination of remote and wireless wall dimmers
Smart light control mobile app

blank blank  blank

Multi-zone

Individual and zone options for color temperature and brightness control

Dimming

Brightness and cool to warm light mode with memory saving options

Physical

Dimension

WxH: 0.63in x 0.5in – 16mm x 13mm
Length: Up to 8 ft – 2.5 m
Weight: 0.11 lbs/ft – 0.16 kg/m

Finish

Silver anodized aluminium, black, or white finish

Field

Indoor and outdoor IP65

Mounting

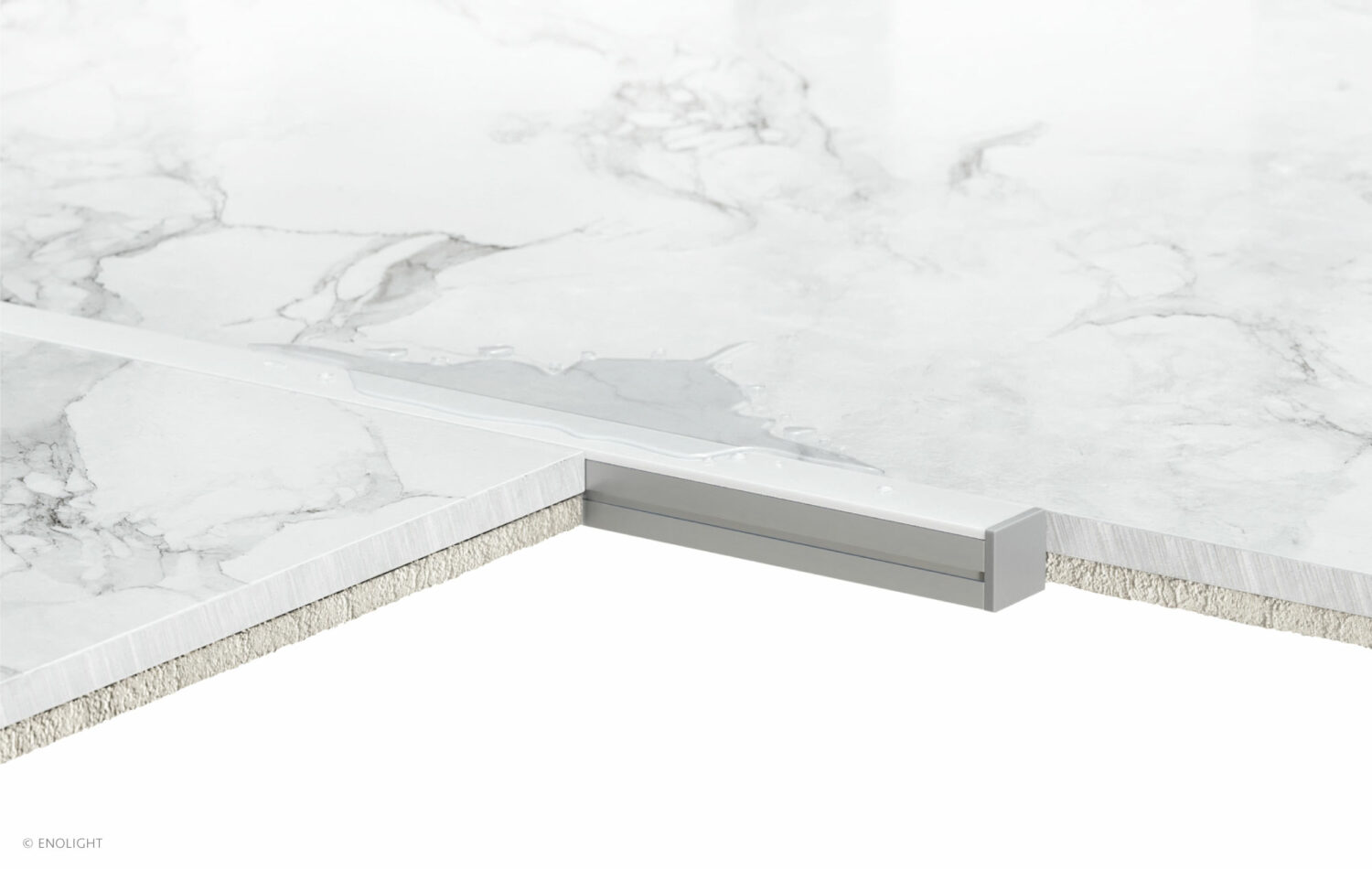

Recessed in tile and stone wet areas

blank  blank  blank

Light

LED Type

Single white, tunable white, Circadian BIOS SkyBlue

CCT

3000K 3500K 4000K 4500K 5000K 5500K

blank

CRI Varieties

97 full spectrum natural color with bright contrast

Brightness

400 Lm/ft – 1400 Lm/m

Life time

50,000 hours

Warranty

5 years warranty
