HYN2002C Trimless Recessed Surface Linear Light with Curved Frosted Lens
HYN2002C is a wide, trimless linear light ideal for flush recessed or surface-mounted installations on cabinets, closets, and wood slat panels. It provides bright, diffused light through a 0.9-inch curved frosted lens, perfect for primary or decorative illumination. Custom lengths with long lens rolls are available for continuous lighting designs.
Characteristics
HYN2002C is a wide, trimless linear light ideal for flush recessed or surface-mounted installations on cabinets, closets, and wood slat panels. It provides bright, diffused light through a 0.9-inch curved frosted lens, perfect for primary or decorative illumination. Custom lengths with long lens rolls are available for continuous lighting designs.
Electrical
Input
24 Volt DC
5 W/ft – 16 W/m
Power Supply
Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage
Operating Temp
-31°F to + 113°F
-35°C to + 45°C
Certification
U.S./Canada UL approved Type IC Recessed
Control
Options
Combination of remote and wireless wall dimmers
Smart light control mobile app
  Â
Multi-zone
Individual and zone options for color temperature and brightness control
Dimming
Brightness and cool to warm light mode with memory saving options
Physical
Dimension

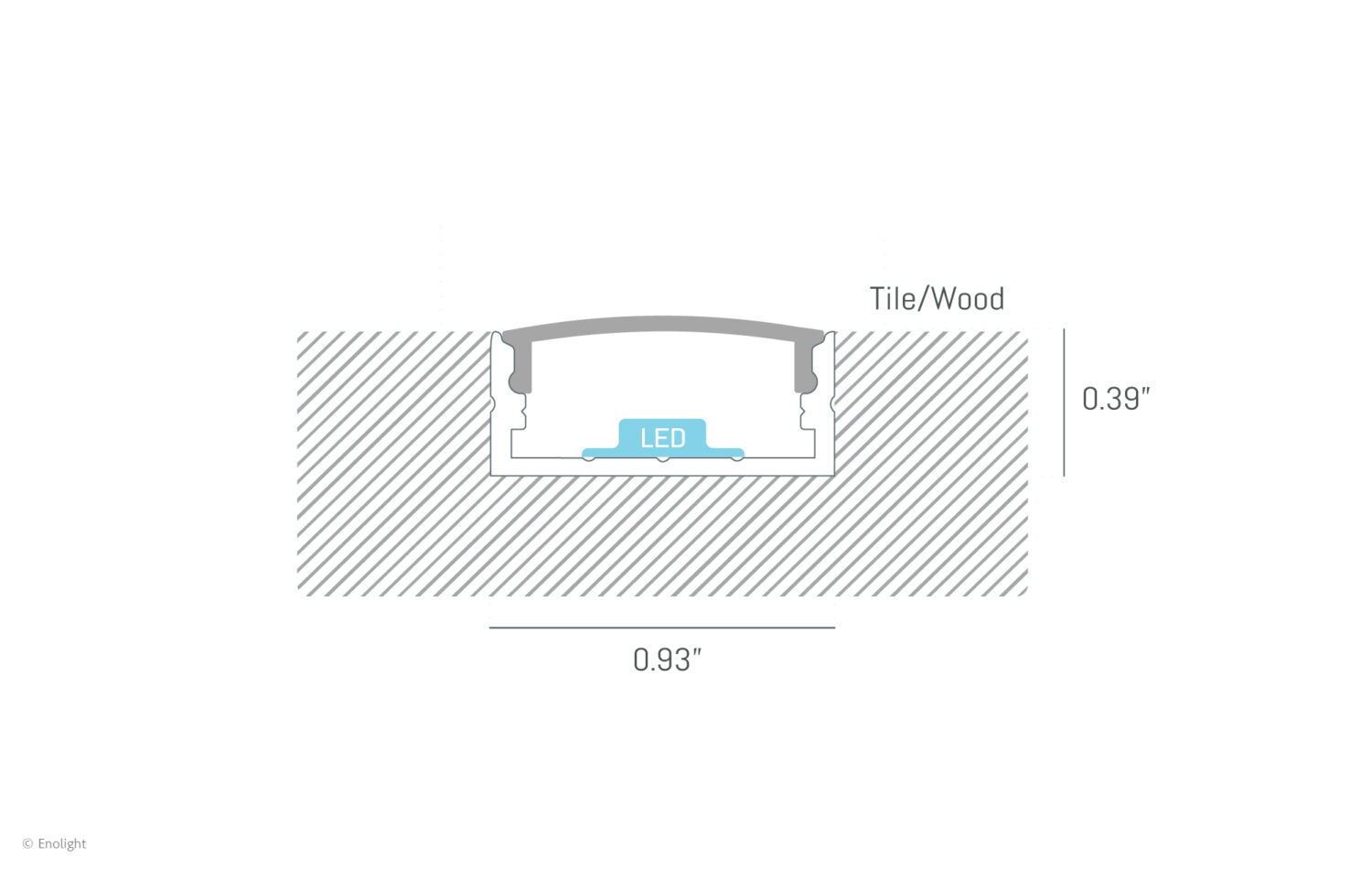

WxH: 0.93 in x 0.39 in – 24mm x 10mm
Length: Up to 8 ft – 2.44 m
Weight: 0.11 lbs/ft – 0.17 kg/m
Finish
Mill, black, white, Silver anodized finish
Field
Damp and dry applications
Mounting
Recessed in drywall, wall and ceiling boards
   Â
Light
LED Type
Single white, tunable white, Circadian BIOS SkyBlue
CCT
3000K 3500K 4000K 4500K 5000K 5500K
CRIÂ Varieties
97 full spectrum natural color with bright contrast
Brightness
400 Lm/ft – 1400 Lm/m
Life time
50,000 hours
Warranty
5 years warranty
