SPK3813F Wooden Board Recessed Linear Light with Flush Frosted Lens
SPK3813F is designed to produce a uniform distribution of diffused light in wooden board applications. This linear LED luminaire has a perfect linear light construct and can be screw-mounted to ceiling or wall board backing.
Characteristics
SPK3813F is a recessed linear profile made of extruded aluminum housing with a protective silver anodized finish, capped with a flush frosted lens.
This linear LED luminaire is designed to produce a uniform distribution of diffused light in wooden board applications. SPK3813F has a perfect linear light construct and can be screw-mounted to ceiling or wall board backing. This channel comes in variable lengths up to 8 feet.
Spark series are complemented with energy-efficient, dot-free, and dimmable LED producing high color rendering index lighting. The bright white LED light source with CCT options from 2200K to 6000K provides lighting that fits the design concept.
The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. SPK3813F channels are perfect fit for indoor applications in residential and commercial spaces to produce ambient or decorative illumination.
EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5 years warranty.
Electrical
Input
24 Volt DC
5 W/ft – 16 W/m
Power Supply
Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage
Operating Temp
-31°F to + 113°F
-35°C to + 45°C
Certification
U.S./Canada UL approved Type IC Recessed
Control
Options
Combination of remote and wireless wall dimmers
Smart light control mobile app
Multi-zone
Individual and zone options for color temperature and brightness control
Dimming
Brightness and cool to warm light mode with memory saving options
Physical
Dimension

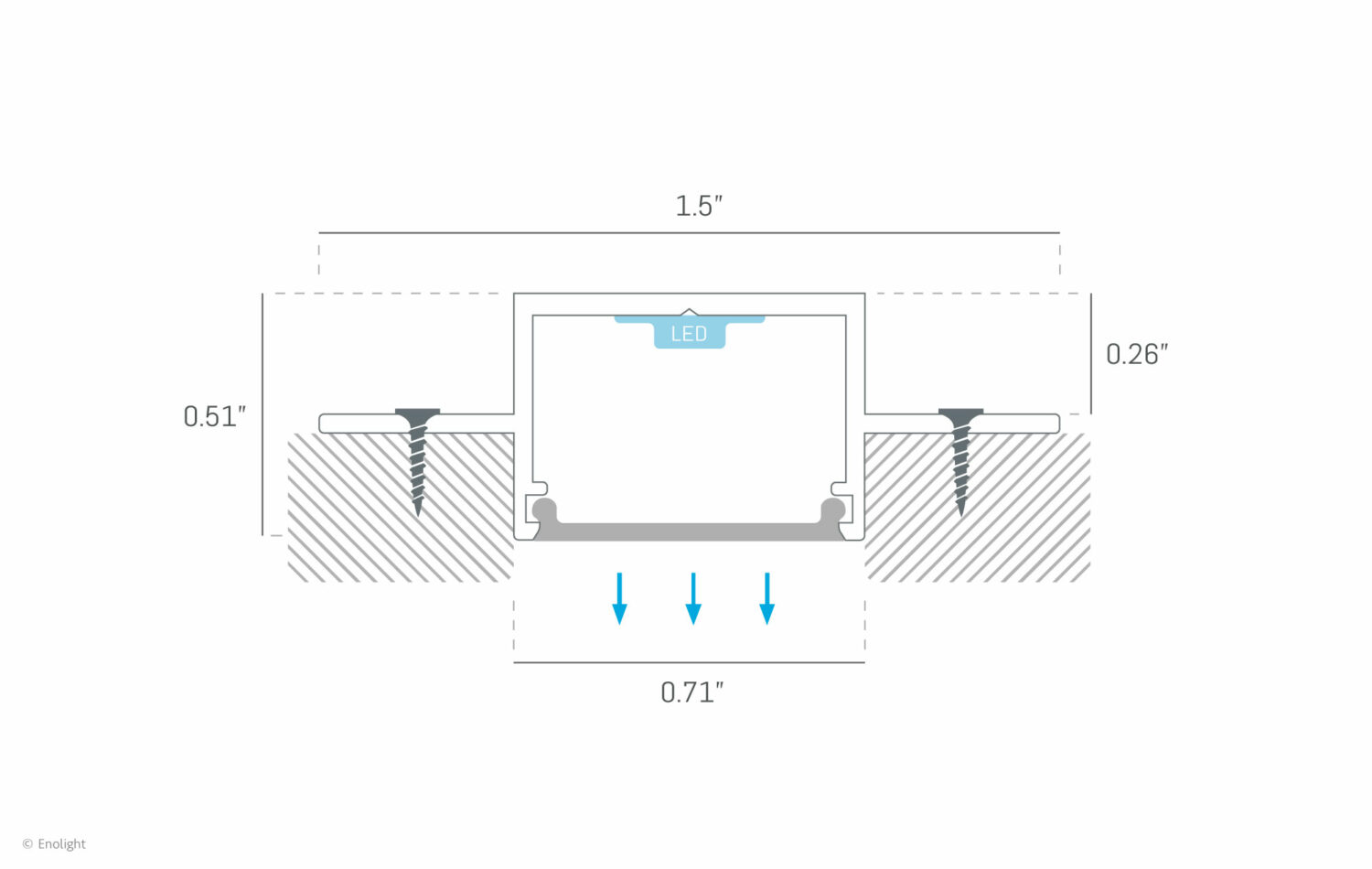

WxH: 1.5in x 0.51in – 38mm x 13mm
Length: Up to 8 ft – 2.5 m
Weight: 0.15 lbs/ft – 0.23 kg/m
Finish
Silver anodized aluminum, black, or white finish
Field
Damp and dry applications
Mounting
Recessed in ceiling or wall wooden board platforms
Light
LED Type
Single white, tunable white, RGB, Circadian BIOS SkyBlue
CCT
3000K 3500K 4000K 4500K 5000K 5500K
CRI Varieties
97 full spectrum natural color with bright contrast
Brightness
400 Lm/ft – 1400 Lm/m
Life time
50,000 hours
Warranty
5 years warranty
