STP6826F Non-Slip Safety Stair Nosing Down Lighting with Flush Frosted Lens

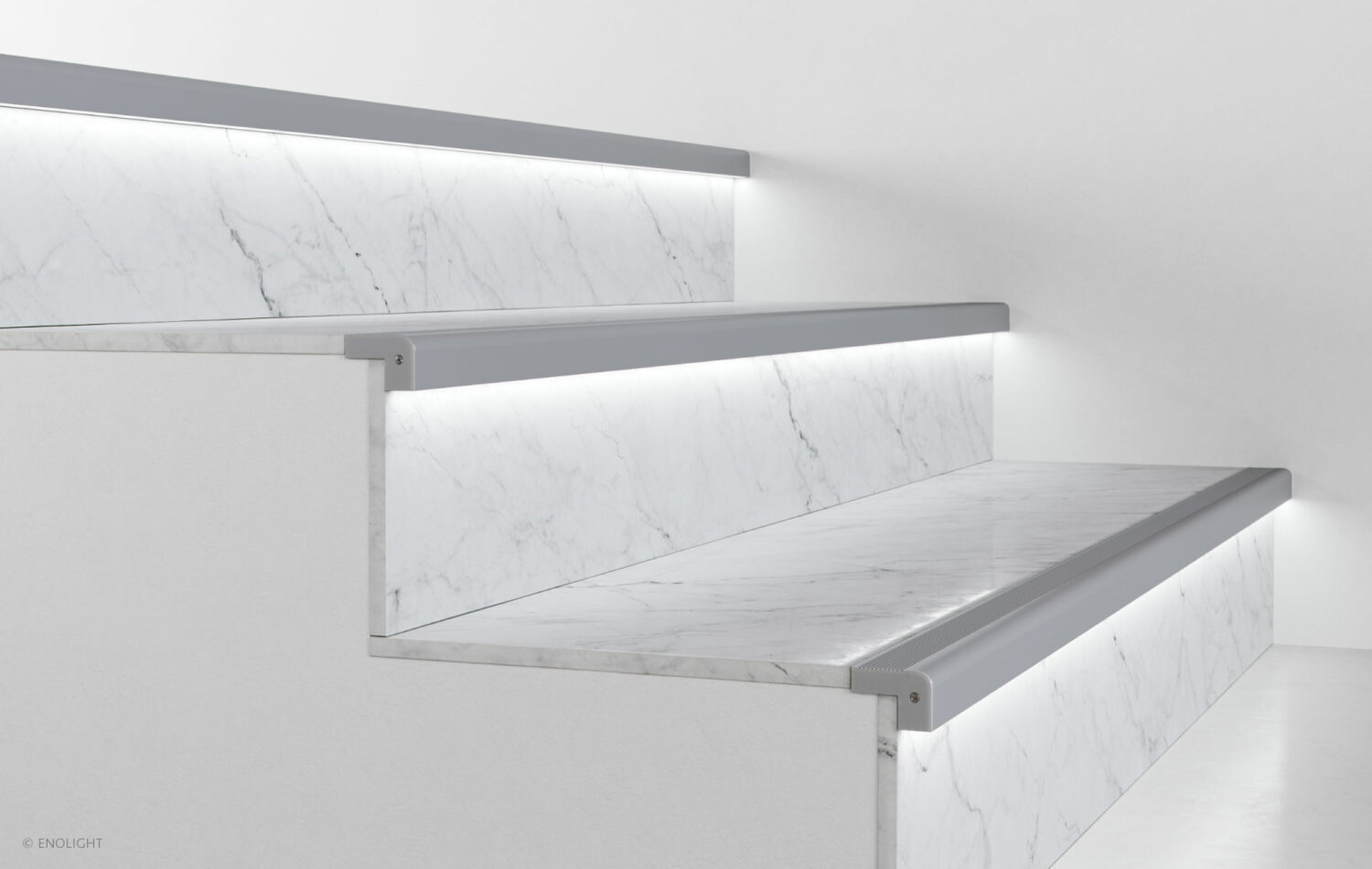

STP6826F is designed to produce an indirect uniform distribution of diffused light in tiled steps. This linear LED luminaire has an anti-slip stair nosing construct and protects tile edges from cracking, while concealing the subassembly.

blank
blank
blank
blank
blank

Characteristics

STP6826F is a linear stair-nosing profile made of extruded aluminum housing with a protective silver anodized finish. The light channel projects downward and is capped with a flush frosted lens.

This linear LED luminaire is designed to produce an indirect diffused light in tiled steps. STP6826F has an anti-slip stair nosing construct and protects tile edges from cracking, while concealing the subassembly. This channel comes in variable lengths up to 8 feet.

Step series are complemented with energy-efficient, dot-free, dimmable LED, producing high color rendering index lighting. The bright white LED light source with CCT options from 2200K to 6000K provides the environment with desired lighting that fits the design concept.

The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. STP6826F is a perfect fit for use in residential and commercial spaces for damp and dry applications to produce ambient or decorative illumination.

EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5 years warranty.

Electrical

Input

24 Volt DC
5 W/ft – 16 W/m

Power Supply

Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage

Operating Temp

-31°F to + 113°F
-35°C to + 45°C

Certification

U.S./Canada UL approved

Control

Options

Combination of remote and wireless wall dimmers
Smart light control mobile app

blank blank  blank

Multi-zone

Individual and zone options for color temperature and brightness control

Dimming

Brightness and cool to warm light mode with memory saving options

Physical

Dimension

WxH: 2.68 in x 1.02 in – 68mm x 26mm
Length: Up to 8 ft – 2.5 m
Weight: 0.45 lbs/ft – 0.67 kg/m

Finish

Silver anodized aluminium, black, or white finish

Field

Damp and dry applications

Mounting

Surface-mounted on tiled stairs

blank

Light

LED Type

Single white, tunable white, Circadian BIOS SkyBlue

CCT

3000K 3500K 4000K 4500K 5000K 5500K

blank

CRI Varieties

97 full spectrum natural color with bright contrast

Brightness

400 Lm/ft – 1400 Lm/m

Life time

50,000 hours

Warranty

5 years warranty
