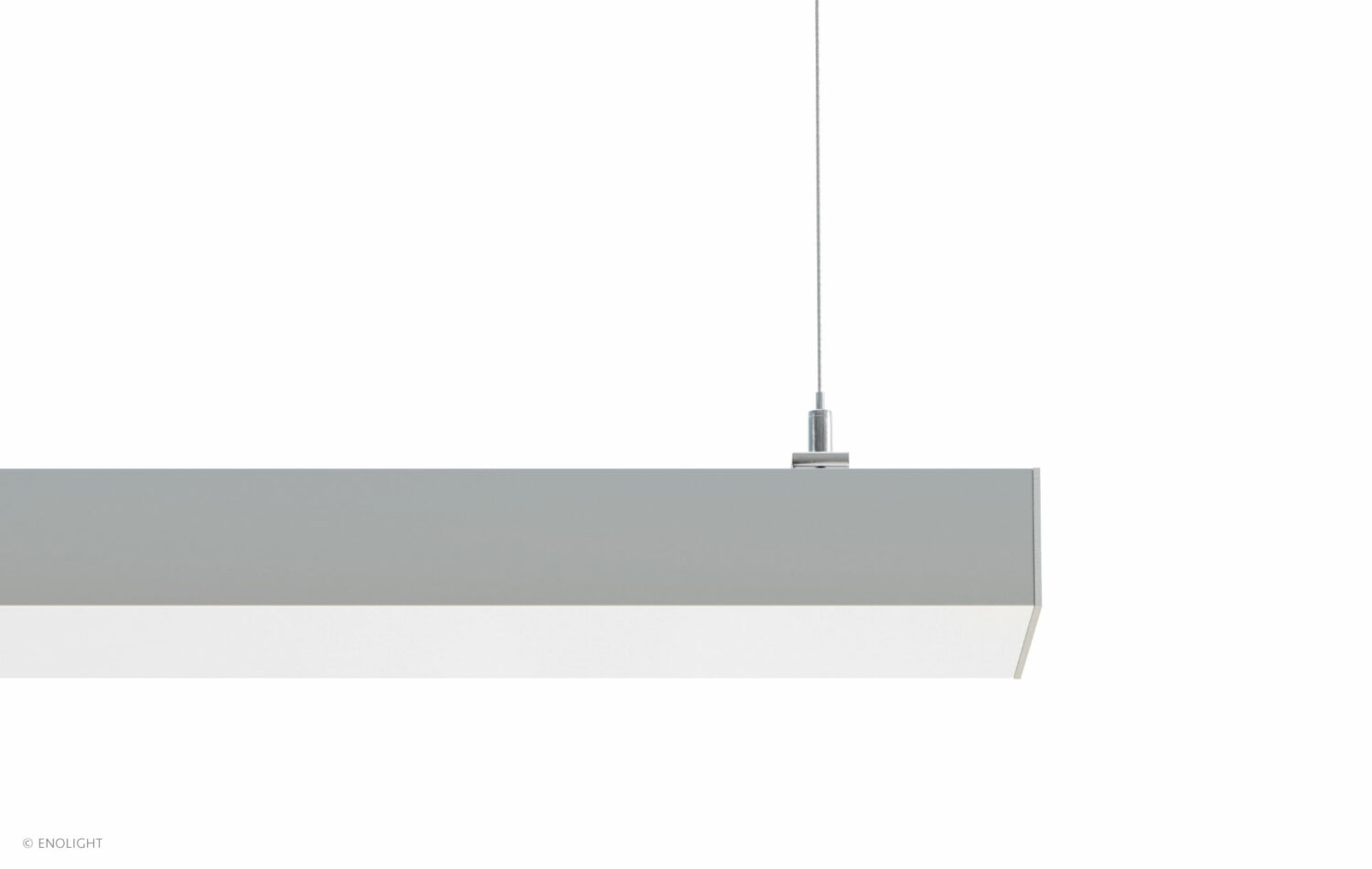

VIV10236F Ultra Wide Suspended Linear Light with 4″ Flush Frosted Lens
VIV10236F is designed with a wide construct to produce a bright uniform distribution of diffused light in pendant applications. This linear LED luminaire is secured using suspension wire ropes and can be used with connectors to attach multiple channels together.
Characteristics
VIV10236F is a pendant linear profile made of extruded aluminum housing with a protective silver anodized finish, capped with a flush frosted lens.
This linear LED luminaire is designed with a wide construct to produce a bright uniform distribution of diffused light in pendant applications. VIV10236F is secured using suspension wire ropes and can be used with connectors to attach multiple channels together. Connectors are available to form 90° angle, T-shape, cross, and linear extensions to enable creation of unique linear patterns. This channel comes in variable lengths up to 8 feet.
Vivid series are complemented with dimmable, energy-efficient, dot-free LED, producing high color rendering index lighting. The bright white LED light source with CCT options from 2200K to 6000K provides the environment with desired lighting that fits the design concept.
The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. VIV10236F is a perfect fit for use in residential and commercial spaces for damp and dry applications to produce ambient or decorative illumination.
EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5 years warranty.
Electrical
Input
24 Volt DC
20 W/ft – 64 W/m
Power Supply
Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage
Operating Temp
-31°F to + 113°F
-35°C to + 45°C
Certification
U.S./Canada UL approved
Control
Options
Combination of remote and wireless wall dimmers
Smart light control mobile app
Multi-zone
Individual and zone options for color temperature and brightness control
Dimming
Brightness and cool to warm light mode with memory saving options
Physical
Dimension

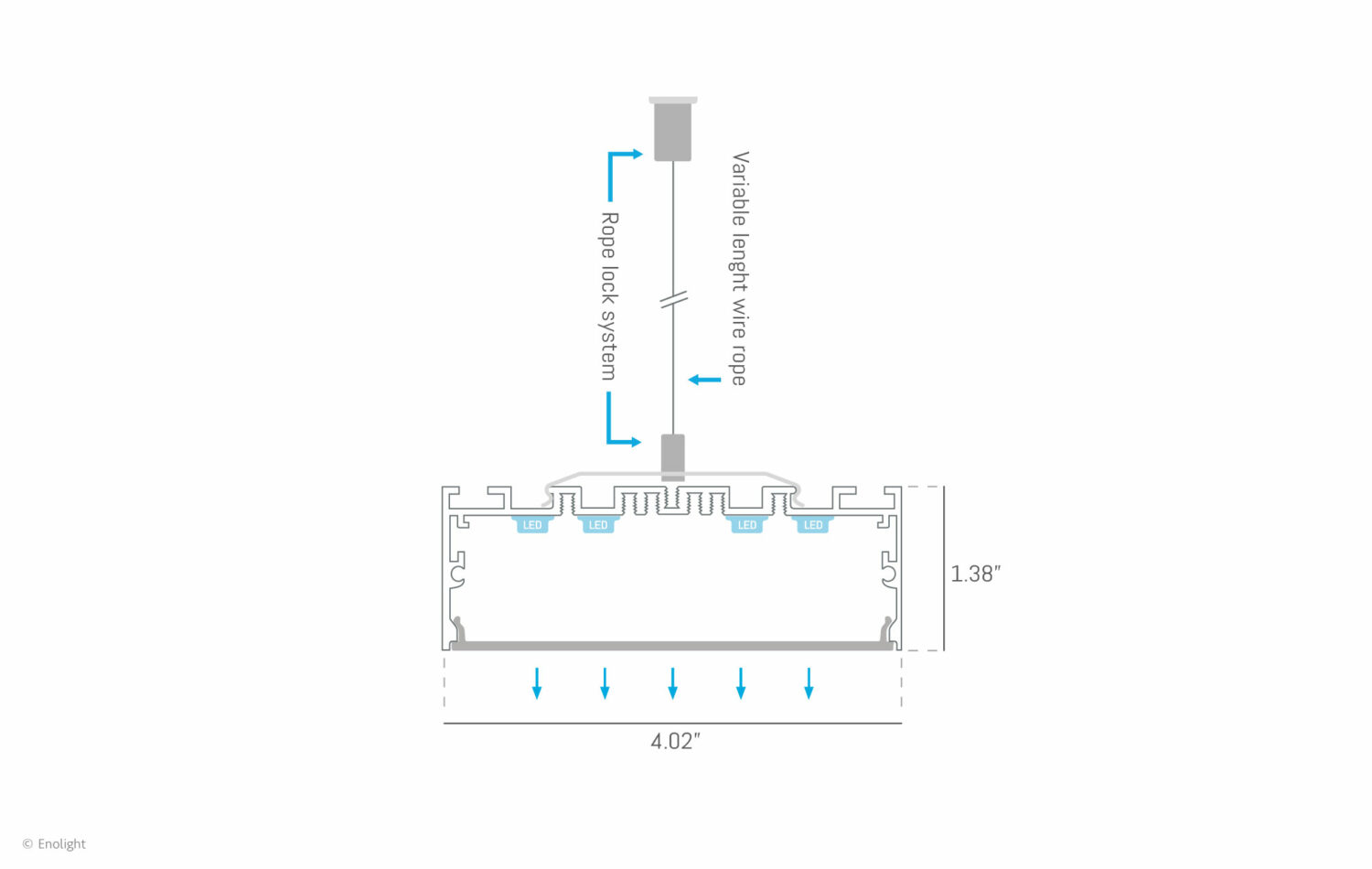

WxH: 4.02in x 1.38in – 102mm x 35mm
Length: Up to 8 ft – 2.5 m
Weight: 0.92 lbs/ft – 1.37 kg/m
Finish
Silver anodized aluminium, black, or white finish
Field
Damp and dry applications
Extension
90° angle, T-shape, cross, and linear connection options
Light
LED Type
Single white, tunable white, Circadian BIOS SkyBlue
CCT
3000K 3500K 4000K 4500K 5000K 5500K
CRI Varieties
97 full spectrum natural color with bright contrast
Brightness
1600 Lm/ft – 5600 Lm/m
Life time
50,000 hours
Warranty
5 years warranty
