Characteristics

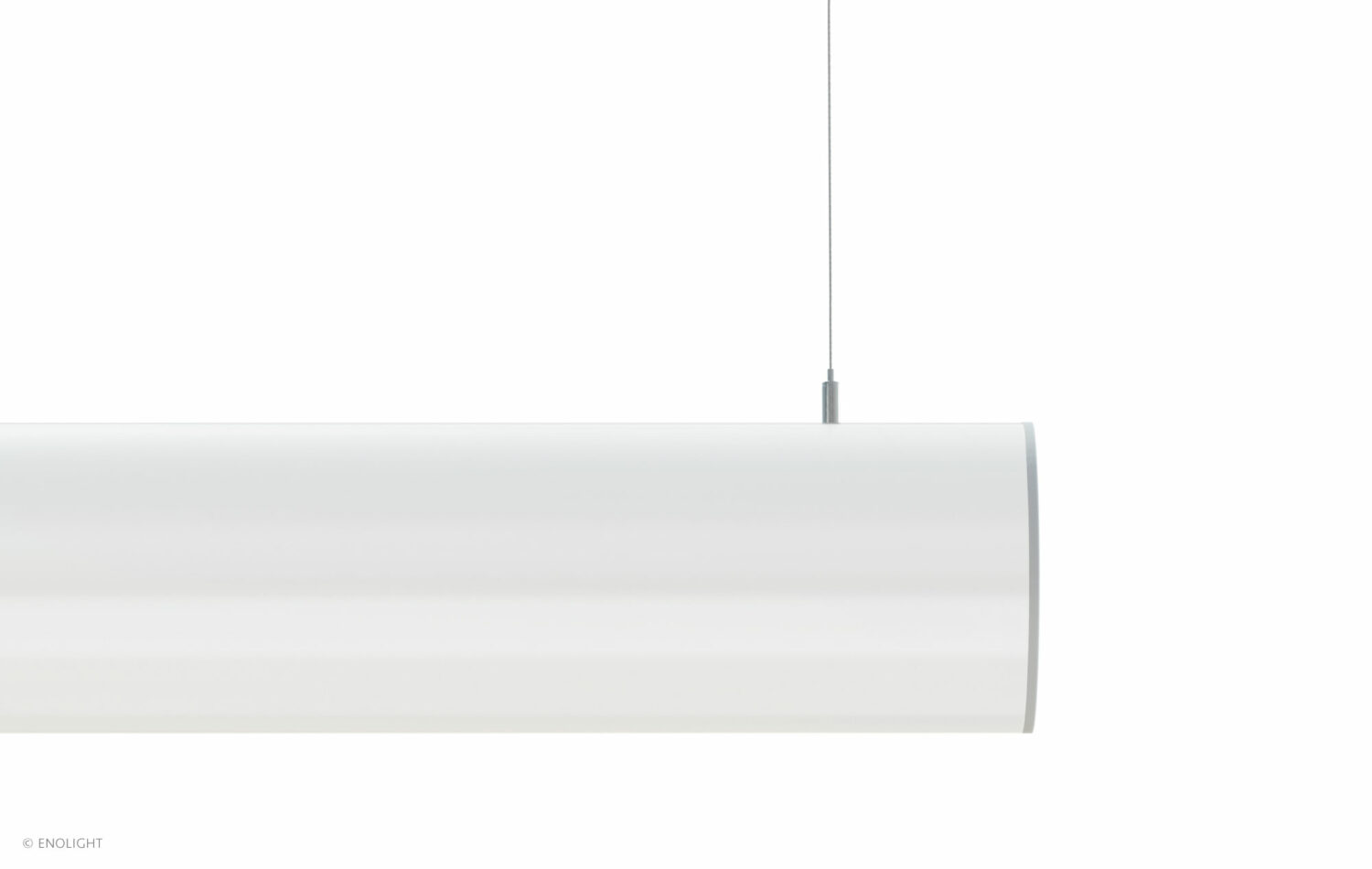

VIV120C is a pendant-surface linear profile made of extruded aluminum housing with a protective silver anodized finish, capped with a round frosted lens.
This linear LED luminaire is designed to acheive a uniform wide-beam-angle light distribution in pendant or surface mounted applications. VIV120C may be secured on a surface using mounting clips or suspended via wire ropes. This channel comes in variable lengths up to 8 feet.
Vivid series are complemented with dimmable, energy-efficient, dot-free LED, producing high color rendering index lighting. The bright white LED light source with CCT options from 2200K to 6000K provides the environment with desired lighting that fits the design concept.
The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. VIV120C is a perfect fit for use in residential and commercial spaces for dry applications to produce ambient or decorative illumination.
EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5 years warranty.
Electrical
Input
24 Volt DC
20 W/ft – 64 W/m
Power Supply
Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage
Operating Temp
-31°F to + 113°F
-35°C to + 45°C
Certification
U.S./Canada UL approved
Control
Options
Combination of remote and wireless wall dimmers
Smart light control mobile app
Multi-zone
Individual and zone options for color temperature and brightness control
Dimming
Brightness and cool to warm light mode with memory saving options
Physical

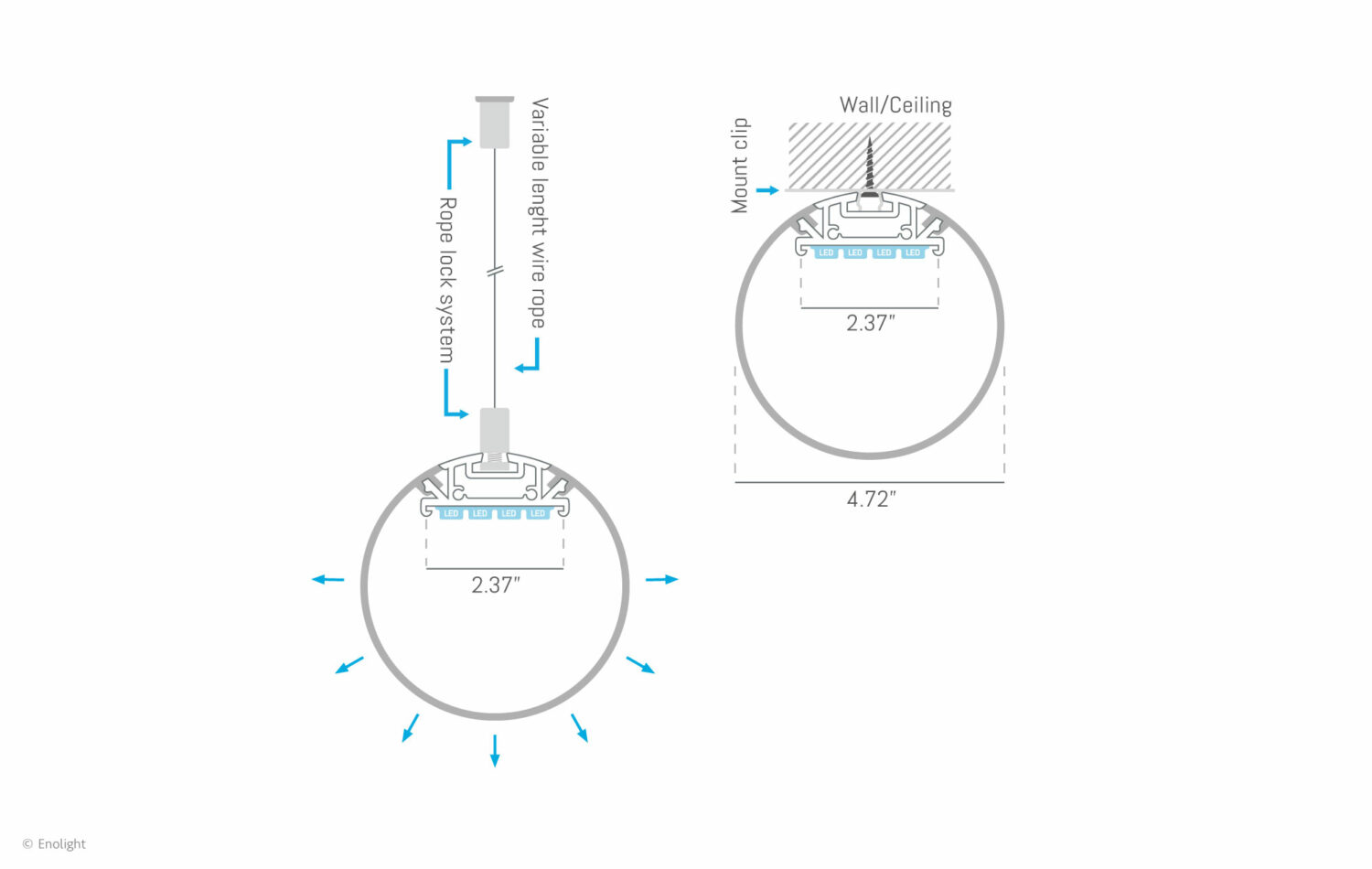

Dimension
WxH: 4.72in x 4.72in – 120mm x 120mm
Length: Up to 8 ft – 2.5 m
Weight: 1.01 lbs/ft – 1.5 kg/m
Finish
Silver anodized aluminium, black, or white finish
Field
Damp and dry applications
Mounting
Pendant or Surface on wall and ceiling
Light
LED Type
Single white, tunable white, Circadian BIOS SkyBlue
CCT
3000K 3500K 4000K 4500K 5000K 5500K
CRI Varieties
97 full spectrum natural color with bright contrast
Brightness
1600 Lm/ft – 5600 Lm/m
Life time
50,000 hours
Warranty
5 years warranty
