VIV14232F Ultra Wide Pendant Surface Linear Light with 5.5″ Frosted Lens

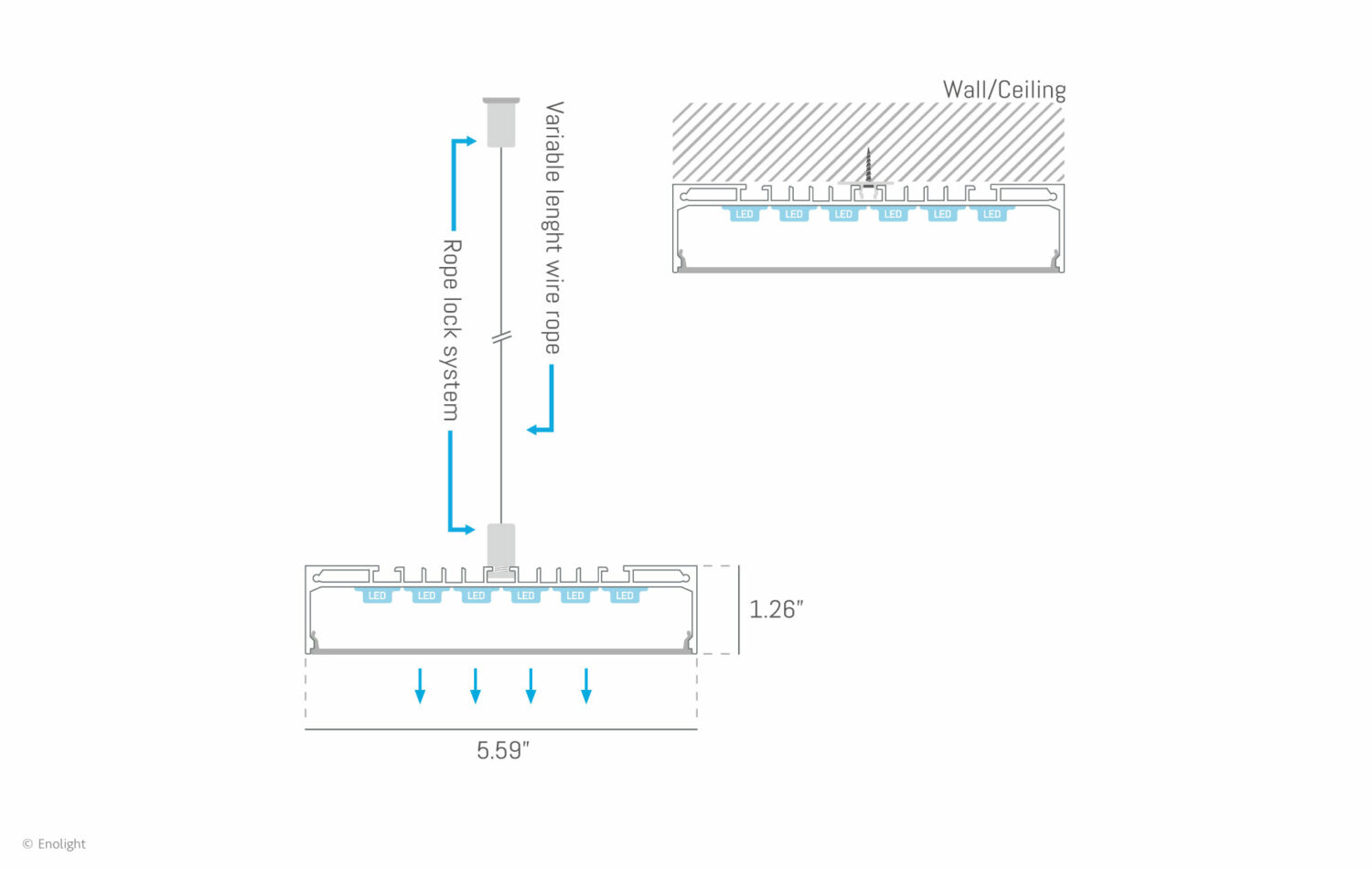

VIV14232F is designed to produce a super bright uniform distribution of diffused light in pendant or surface mounted applications. This luminaire may be secured on a surface using mounting clips or suspended via wire ropes.

blank
blank
blank
blank
blank

Characteristics

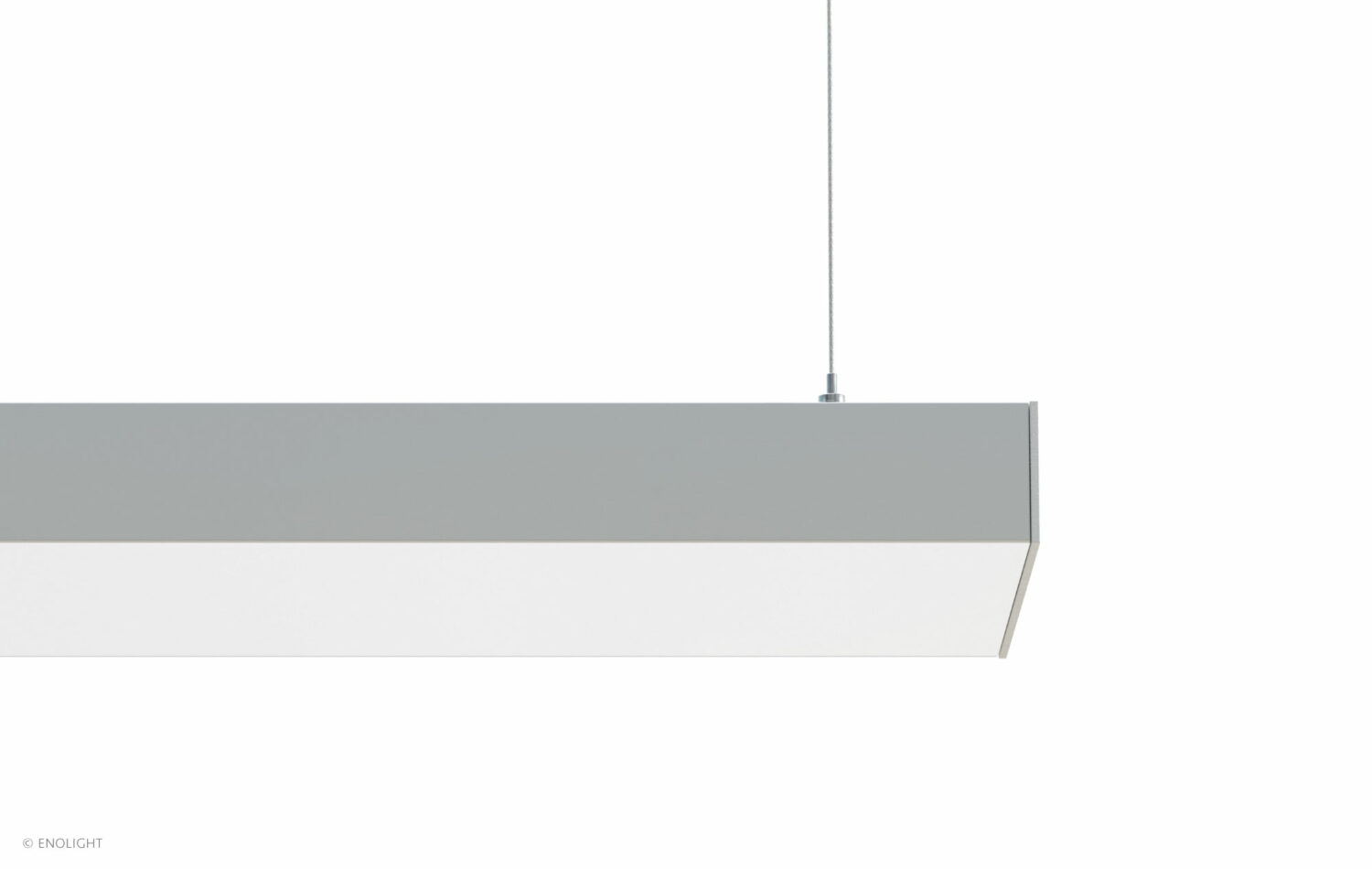

VIV14232F is a pendant-surface linear profile made of extruded aluminum housing with a protective silver anodized finish, capped with a flush frosted lens.

This linear LED luminaire is designed to produce a super bright uniform distribution of diffused light in pendant or surface mounted applications. VIV14232F may be secured on a surface using mounting clips or suspended via wire ropes. This channel comes in variable lengths up to 8 feet.

Vivid series are complemented with dimmable, energy-efficient, dot-free LED, producing high color rendering index lighting. The bright white LED light source with CCT options from 2200K to 6000K provides the environment with desired lighting that fits the design concept.

The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. VIV14232F is a perfect fit for use in industrial and commercial spaces for damp and dry applications to produce ambient or decorative illumination.

EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5 years warranty.

Electrical

Input

24 Volt DC
30 W/ft – 96 W/m

Power Supply

Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage

Operating Temp

-31°F to + 113°F
-35°C to + 45°C

Certification

U.S./Canada UL approved

Control

Options

Combination of remote and wireless wall dimmers
Smart light control mobile app

blank blank  blank

Multi-zone

Individual and zone options for color temperature and brightness control

Dimming

Brightness and cool to warm light mode with memory saving options

Physical

Dimension

WxH: 5.59in x 1.26in – 142mm x 32mm
Length: Up to 8 ft – 2.5 m
Weight: 1.17 lbs/ft – 1.74 kg/m

Finish

Silver anodized aluminium, black, or white finish

Field

Damp and dry applications

Mounting

Pendant or Surface on wall and ceiling

blank  blank  blank

Light

LED Type

Single white, tunable white, Circadian BIOS SkyBlue

CCT

3000K 3500K 4000K 4500K 5000K 5500K

blank

CRI Varieties

97 full spectrum natural color with bright contrast

Brightness

2400 Lm/ft – 8400 Lm/m

Life time

50,000 hours

Warranty

5 years warranty
