VIV2315F Spring Clip Linear Trim Light with 1/2″ Sand Texture Frosted Lens

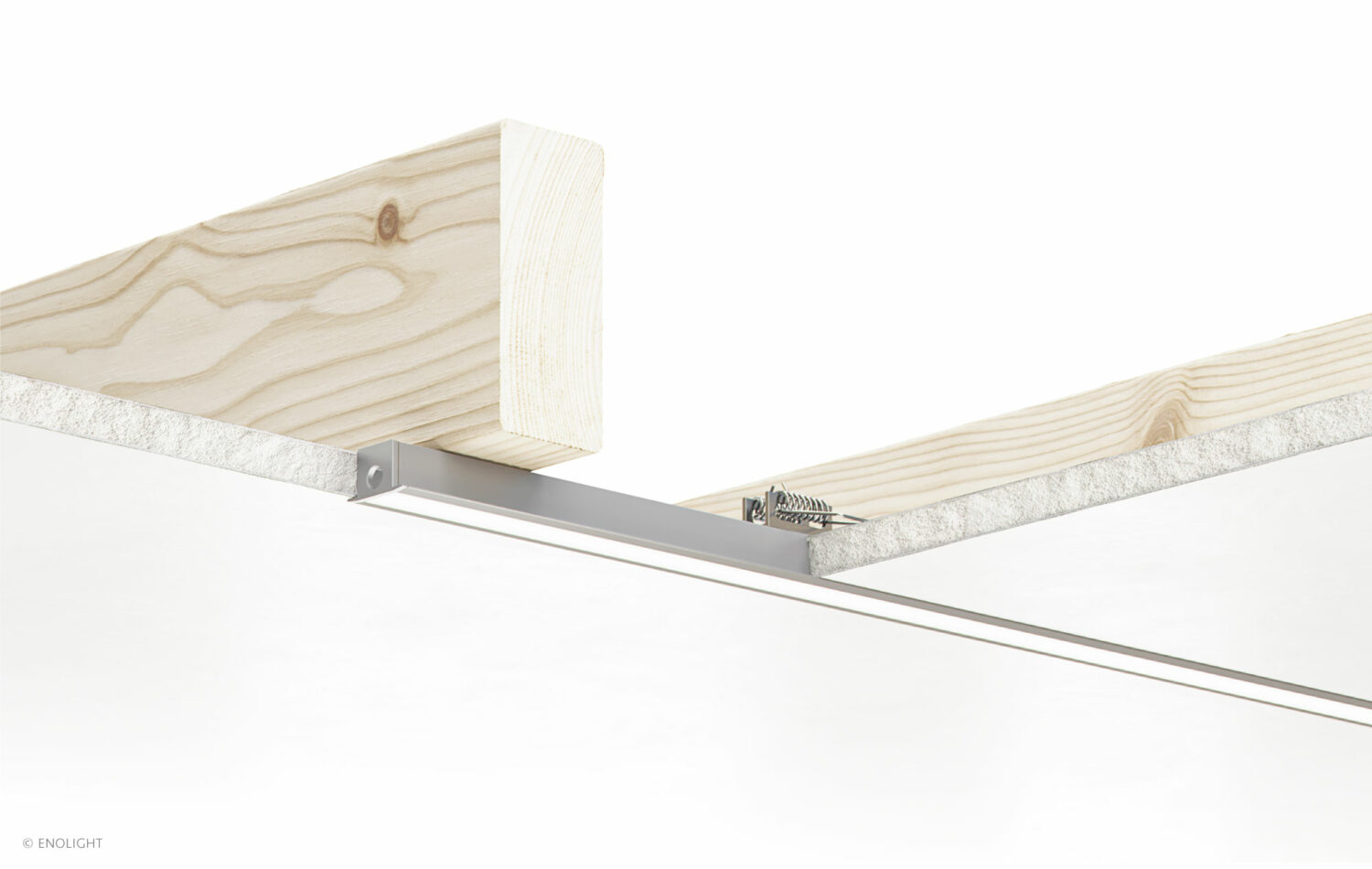

VIV2315F is a recessed linear trim light mounted by spring clips into 1/2″ or thicker drywall and panels without joist modification. This luminaire comes in variable lengths up to 18 feet and provides a uniform distribution of diffused light with a 1/2 inch frosted matte lens suitable for damp and dry applications.
Characteristics
VIV2315F is a recessed linear profile made of extruded aluminum housing with a protective silver anodized finish, capped with half inch wide flat frosted lens.
This LED luminaire is designed with a narrow base and provides a uniform light in drywall and ceiling board applications. VIV2315F can be mounted without joist modification into 1/2 inch or thicker panels by spring clips. This channel comes in variable lengths up to 18 feet.
Vivid series are complemented with dimmable, energy-efficient, dot-free LED, producing high color rendering index lighting. The bright white LED light source with CCT options from 2200K to 6000K provides the environment with desired lighting that fits the design concept.
The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. VIV2315F is a perfect fit for use in residential and commercial spaces for damp and dry applications to produce ambient or decorative illumination.
EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5 years warranty.
Electrical
Input
24 Volt DC
5 W/ft – 16 W/m
Power Supply
Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage
Operating Temp
-31°F to + 113°F
-35°C to + 45°C
Certification
U.S./Canada UL approved Type IC Recessed
Control
Options
Combination of remote and wireless wall dimmers
Smart light control mobile app
Multi-zone
Individual and zone options for color temperature and brightness control
Dimming
Brightness and cool to warm light mode with memory saving options
Physical
Dimension

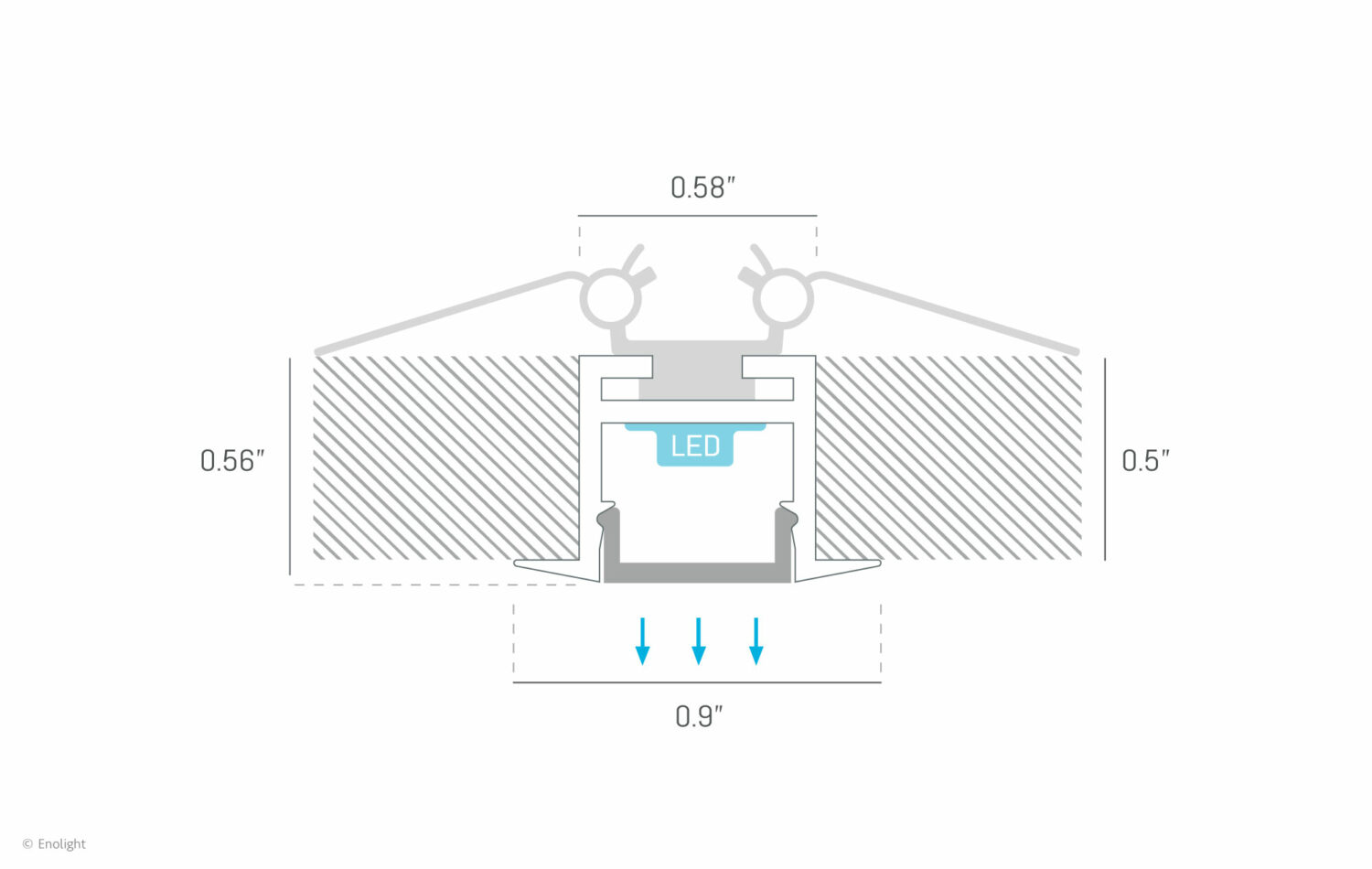

WxH: 0.9 in x 0.56 in – 23mm x14mm
Length: Up to 18 ft – 5.5 m
Weight: 0.14 lbs/ft – 0.21 kg/m
Finish
Mill, black, white, Silver anodized finish
Field
Damp and dry applications
Mounting
Recessed in drywall, wall and ceiling boards
Light
LED Type
Single white, tunable white, Circadian BIOS SkyBlue
CCT
3000K 3500K 4000K 4500K 5000K 5500K
CRI Varieties
97 full spectrum natural color with bright contrast
Brightness
400 Lm/ft – 1400 Lm/m
Life time
50,000 hours
Warranty
5 years warranty
