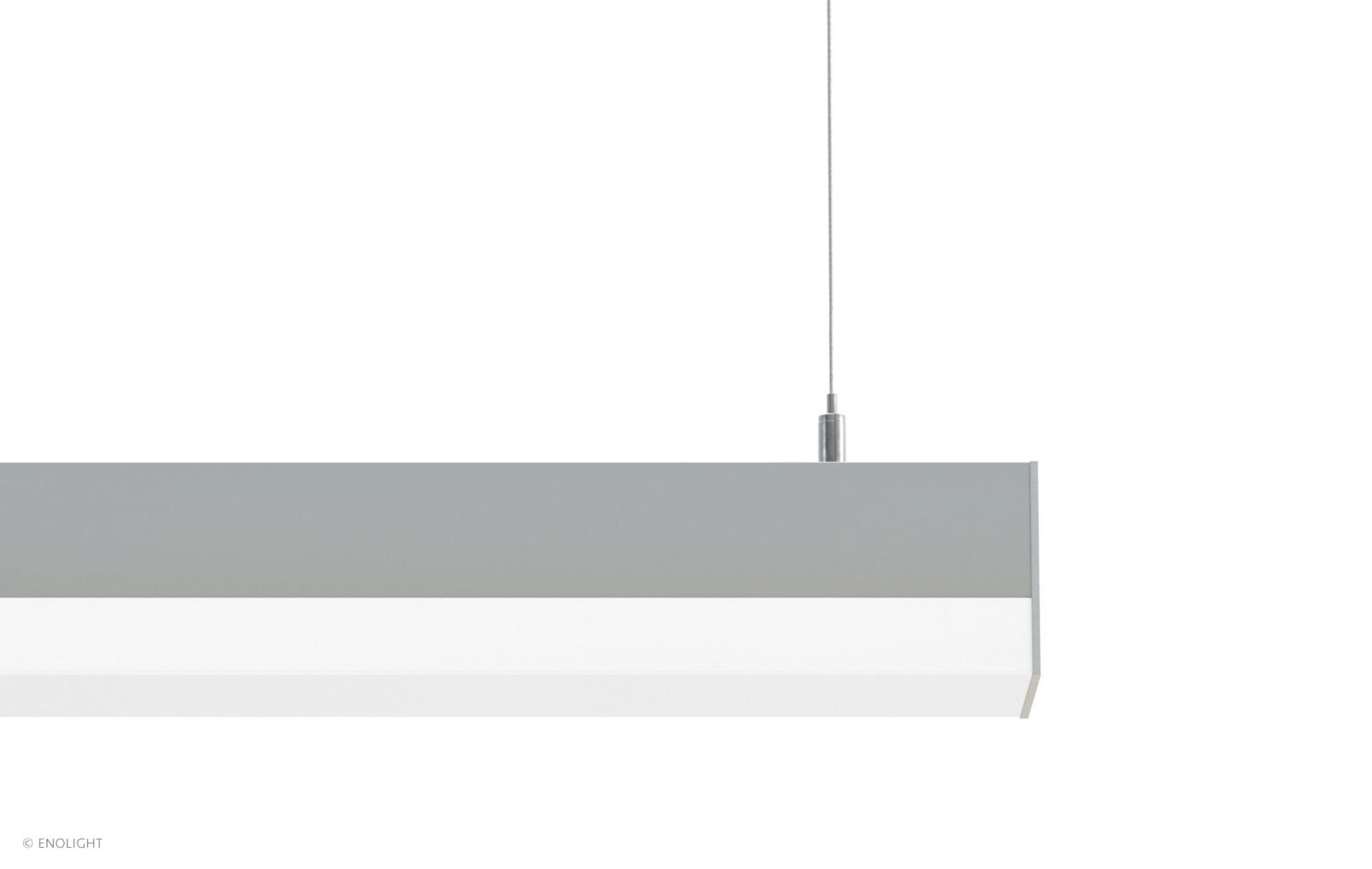

VIV5550S Suspended Linear LED Light with 2″ Square Frosted Lens

VIV5550S is designed to produce a bright uniform distribution of diffused light in pendant applications. This luminaire is secured using suspension wire ropes.

blank
blank
blank
blank
blank

Characteristics

VIV5550S is a pendant linear profile made of extruded aluminum housing with a protective silver anodized finish, capped with a square frosted lens that surrounds the LED housing.

This linear LED luminaire is designed to produce a bright uniform distribution of diffused light in pendant applications. VIV5550F is secured using suspension wire ropes and comes in variable lengths up to 8 feet.

Vivid series are complemented with dimmable, energy-efficient, dot-free LED, producing high color rendering index lighting. The bright white LED light source with CCT options from 2200K to 6000K provides the environment with desired lighting that fits the design concept.

The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. VIV5550F is a perfect fit for use in residential and commercial spaces for damp and dry applications to produce ambient or decorative illumination.

EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5 years warranty.

Electrical

Input

24 Volt DC
20 W/ft – 64 W/m

Power Supply

Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage

Operating Temp

-31°F to + 113°F
-35°C to + 45°C

Certification

U.S./Canada UL approved

Control

Options

Combination of remote and wireless wall dimmers
Smart light control mobile app

blank blank  blank

Multi-zone

Individual and zone options for color temperature and brightness control

Dimming

Brightness and cool to warm light mode with memory saving options

Physical

Dimension

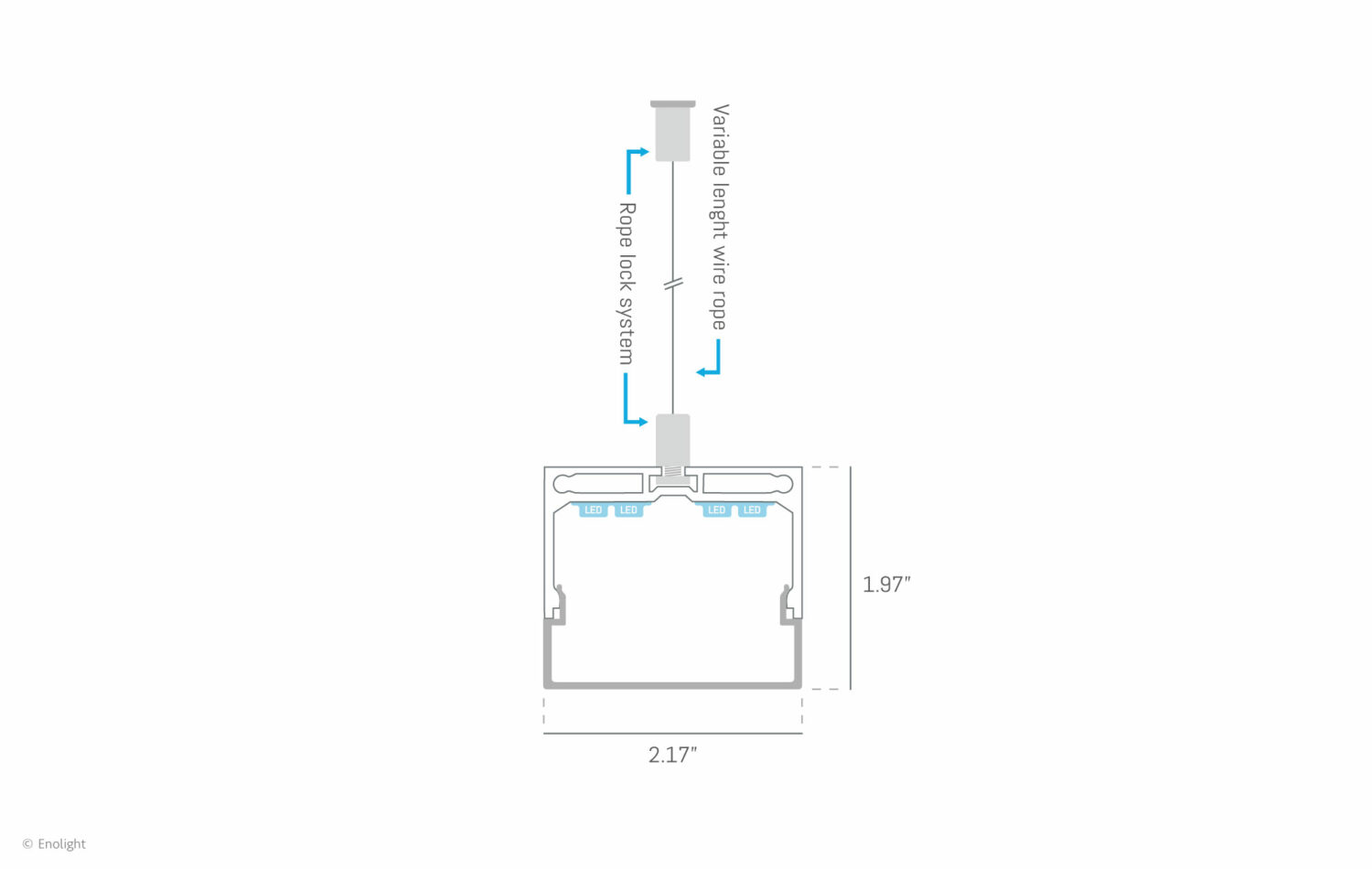

WxH: 2.17in x 1.97in – 55mm x 50mm
Length: Up to 8 ft – 2.5 m
Weight: 0.79 lbs/ft – 1.17 kg/m

Finish

Silver anodized aluminium, black, or white finish

Field

Damp and dry applications

Mounting

Suspended in damp or dry locations

blank

Light

LED Type

Single white, tunable white, Circadian BIOS SkyBlue

CCT

3000K 3500K 4000K 4500K 5000K 5500K

blank

CRI Varieties

97 full spectrum natural color with bright contrast

Brightness

1600 Lm/ft – 5600 Lm/m

Life time

50,000 hours

Warranty

5 years warranty
