VIV6535F Extendable Recessed Ceiling Board Linear Light with 2″ Frosted Lens

VIV6535F is an extendable linear light recessed mounted with spring clips in ceiling panels. This luminaire comes in variable lengths up to 8 feet and provides a uniform distribution of diffused light with a 2″ frosted lens suitable for damp and dry applications.

blank
blank
blank
blank
blank

Characteristics

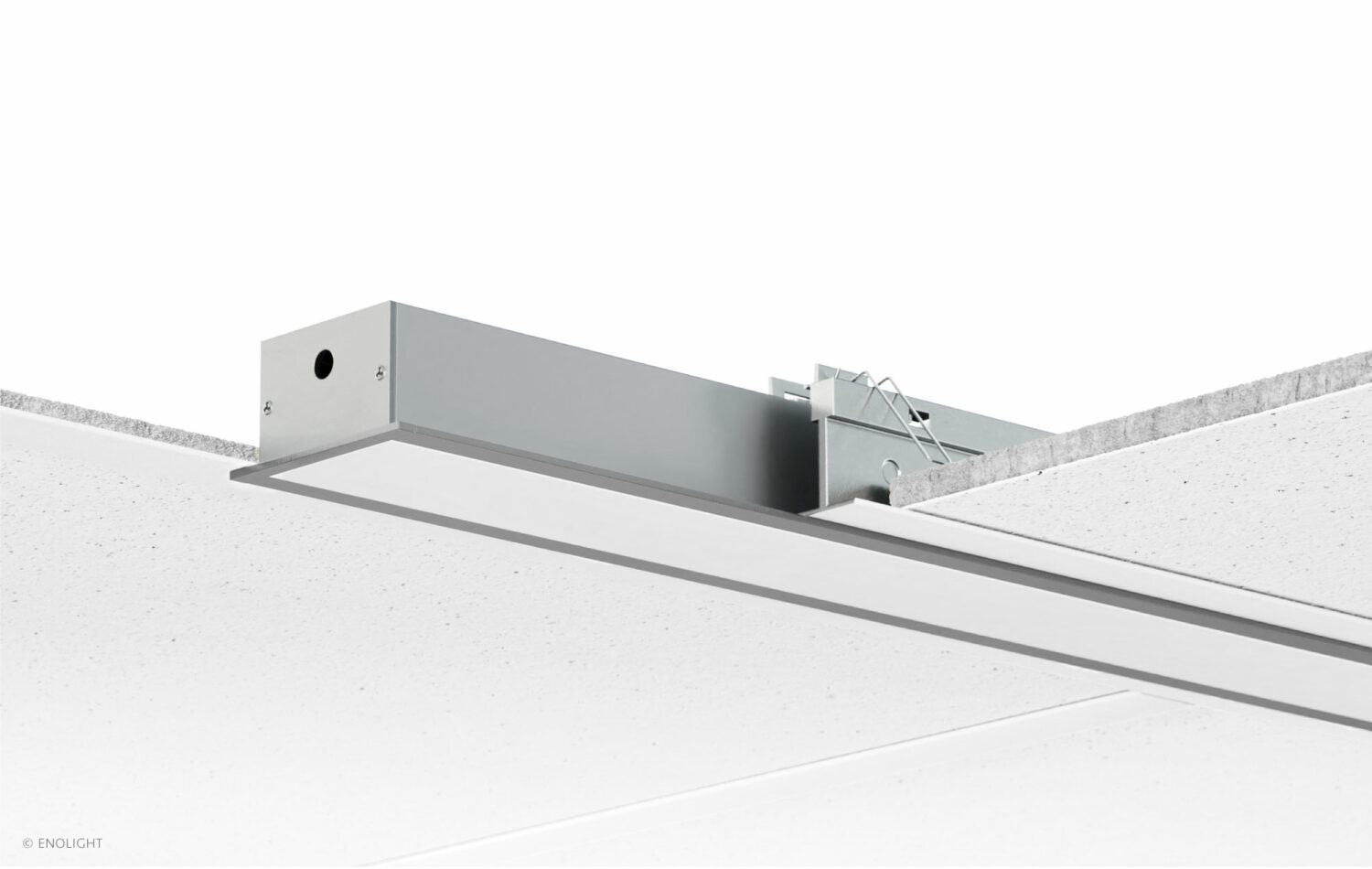

VIV6535F is a recessed linear profile made of extruded aluminum housing with a protective silver anodized finish, capped with a flush frosted lens.

This linear LED luminaire is designed to produce a uniform distribution of diffused light in ceiling tile and ceiling board applications. VIV6535F can be mounted using recessed spring clips and used with connectors to attach multiple channels together. Connectors are available to form 90° angle, T-shape, cross, and linear extensions to enable creation of unique linear patterns. This channel comes in variable lengths up to 8 feet.

Vivid series are complemented with dimmable, energy-efficient, dot-free LED, producing high color rendering index lighting. The bright white LED light source with CCT options from 2200K to 6000K provides the environment with desired lighting that fits the design concept.

The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. VIV6535F is a perfect fit for use in residential and commercial spaces for damp and dry applications to produce ambient or decorative illumination.

EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5 years warranty.

Electrical

Input

24 Volt DC
10 W/ft – 32 W/m

Power Supply

Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage

Operating Temp

-31°F to + 113°F
-35°C to + 45°C

Certification

U.S./Canada UL approved Type IC Recessed

Control

Options

Combination of remote and wireless wall dimmers
Smart light control mobile app

blank blank  blank

Multi-zone

Individual and zone options for color temperature and brightness control

Dimming

Brightness and cool to warm light mode with memory saving options

Physical

Dimension

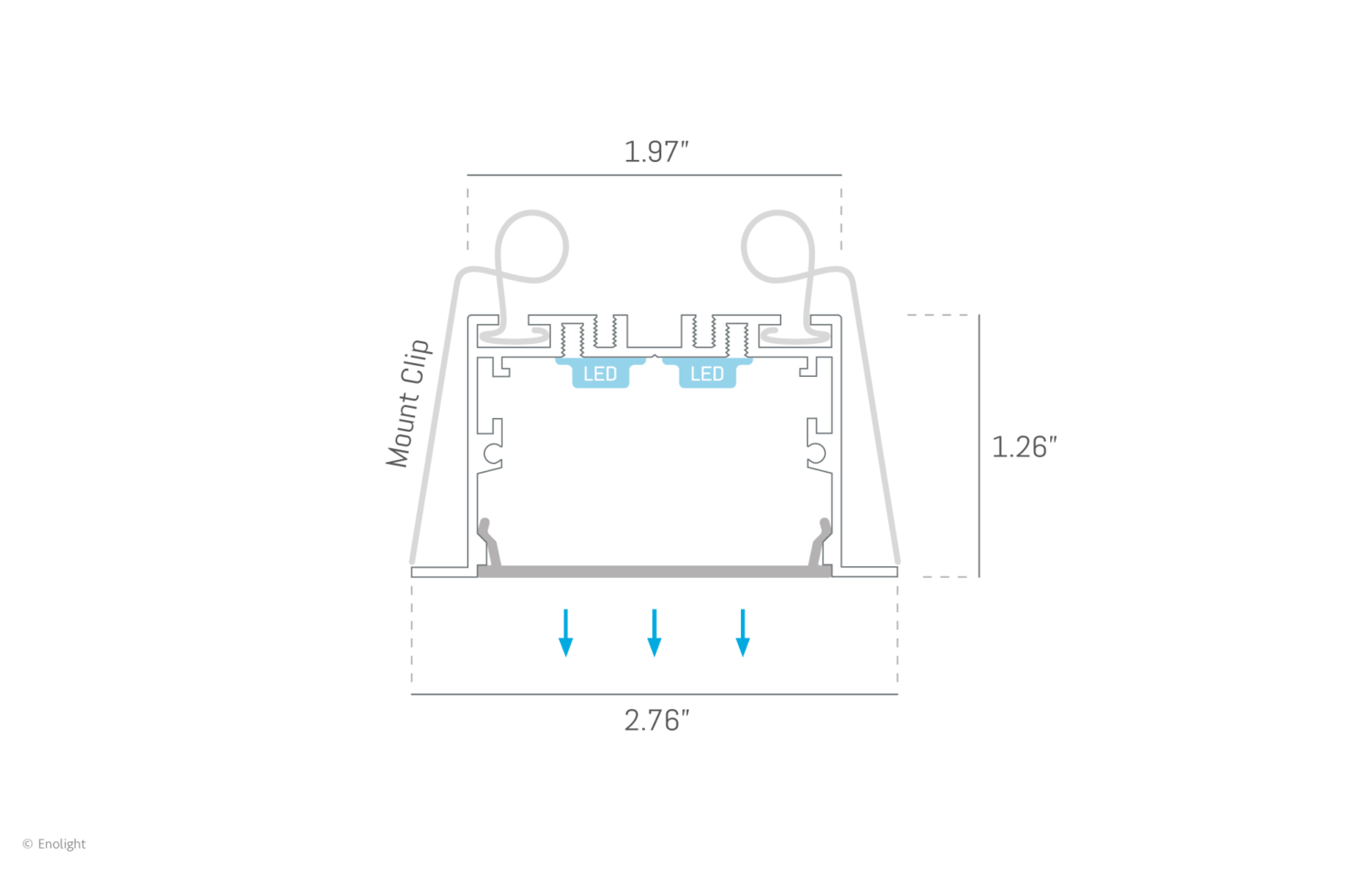

WxH: 2.76 in x 1.26 in – 70mm x 32mm
Length: Up to 8 ft – 2.5 m
Weight: 0.67 lbs/ft – 1 kg/m

Finish

Silver anodized aluminium, black, or white finish

Field

Damp and dry applications

Extension

90° angle, T-shape, cross, and linear connection options

blank  blank  blank  blank

Light

LED Type

Single white, tunable white, Circadian BIOS SkyBlue

CCT

3000K 3500K 4000K 4500K 5000K 5500K

blank

CRI Varieties

97 full spectrum natural color with bright contrast

Brightness

800 Lm/ft – 2800 Lm/m

Life time

50,000 hours

Warranty

5 years warranty
