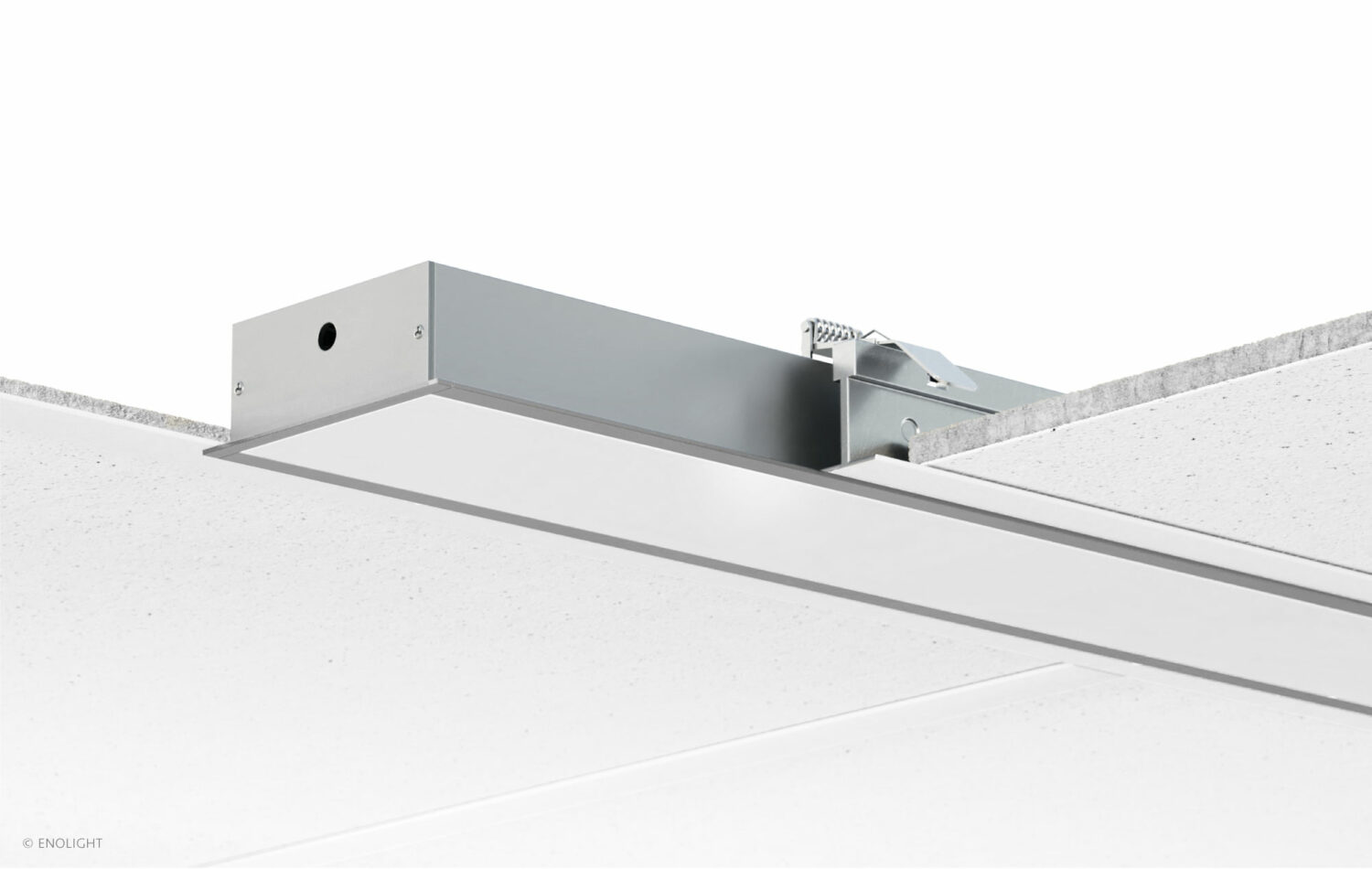

VIV9540F Super Bright Recessed Ceiling Board Linear Light with 3″ Frosted Lens

VIV9540F is a super bright linear light recessed mounted with spring clips in ceiling panels. This luminaire comes in variable lengths up to 8 feet and provides a uniform distribution of diffused light with a 3″ frosted lens suitable for damp and dry applications.



VIV9540F is a recessed linear profile made of extruded aluminum housing with a protective silver anodized finish, capped with a flush frosted lens.

This linear LED luminaire is designed with a wide base and provides a bright uniform distribution of diffused light in ceiling board and ceiling tile applications. VIV9540F can be mounted using recessed spring clips and used with connectors to attach multiple channels together. Connectors are available to form 90° angle, T-shape, cross, and linear extensions to enable creation of unique linear patterns. This channel comes in variable lengths up to 8 feet.

Vivid series are complemented with dimmable, energy-efficient, dot-free LED, producing high color rendering index lighting. The bright white LED light source with CCT options from 2200K to 6000K provides the environment with desired lighting that fits the design concept.

The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. VIV9540F is a perfect fit for use in industrial and commercial spaces for damp and dry applications to produce ambient or decorative illumination.

EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5 years warranty.



24 Volt DC
15 W/ft – 48 W/m

Power Supply

Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage

Operating Temp

-31°F to + 113°F
-35°C to + 45°C


U.S./Canada UL approved Type IC Recessed



Combination of remote and wireless wall dimmers
Smart light control mobile app

blank blank  blank


Individual and zone options for color temperature and brightness control


Brightness and cool to warm light mode with memory saving options

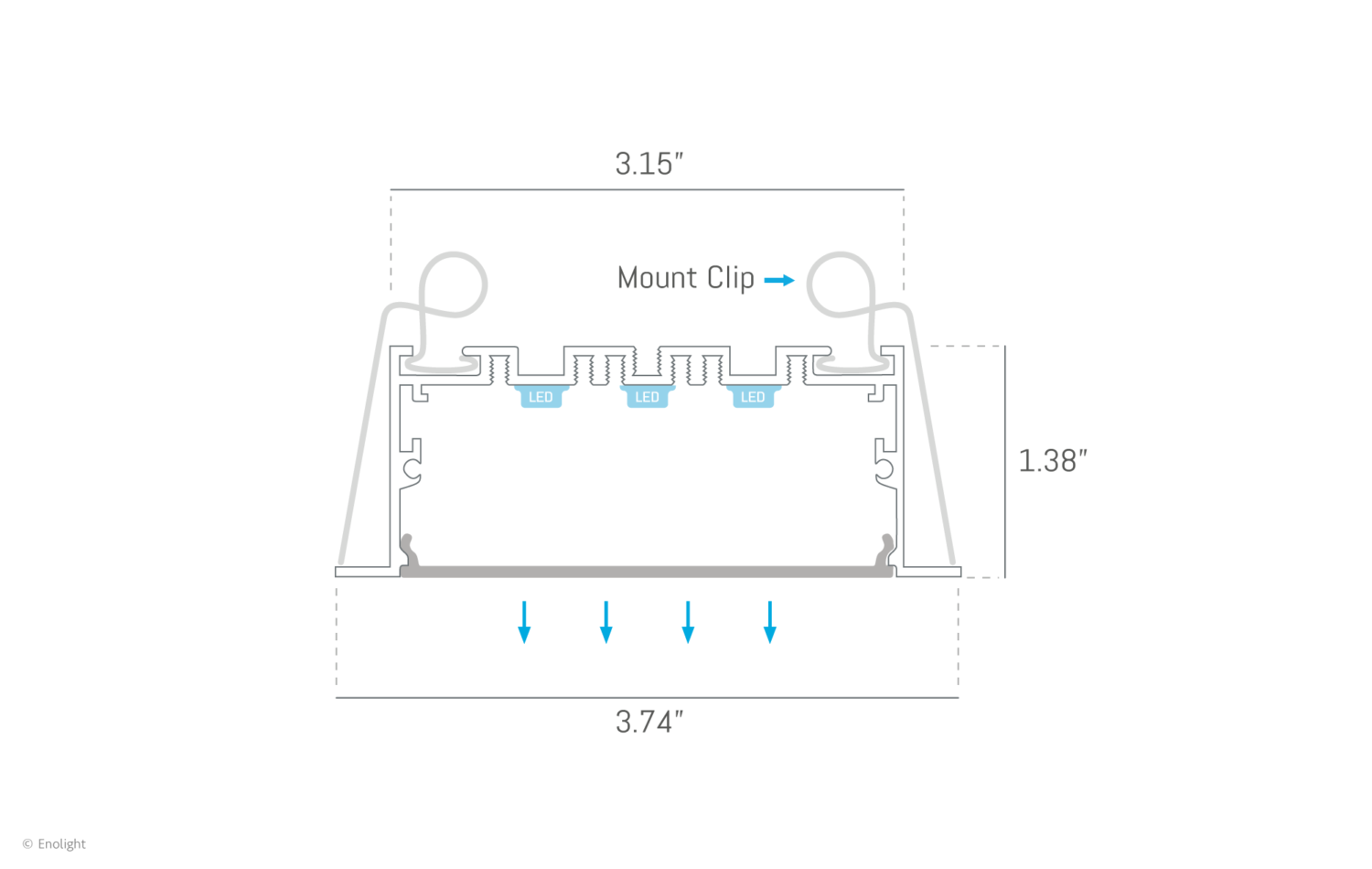

WxH: 3.74in x 1.38in – 95mm x 35mm
Length: Up to 8 ft – 2.5 m
Weight: 0.71 lbs/ft – 1.05 kg/m


Silver anodized aluminium, black, or white finish


Damp and dry applications


90° angle, T-shape, cross, and linear connection options

blank  blank  blank  blank


LED Type

Single white, tunable white, Circadian BIOS SkyBlue


3000K 3500K 4000K 4500K 5000K 5500K


CRI Varieties

97 full spectrum natural color with bright contrast


1200 Lm/ft – 4200 Lm/m

Life time

50,000 hours


5 years warranty
