HYN1610F

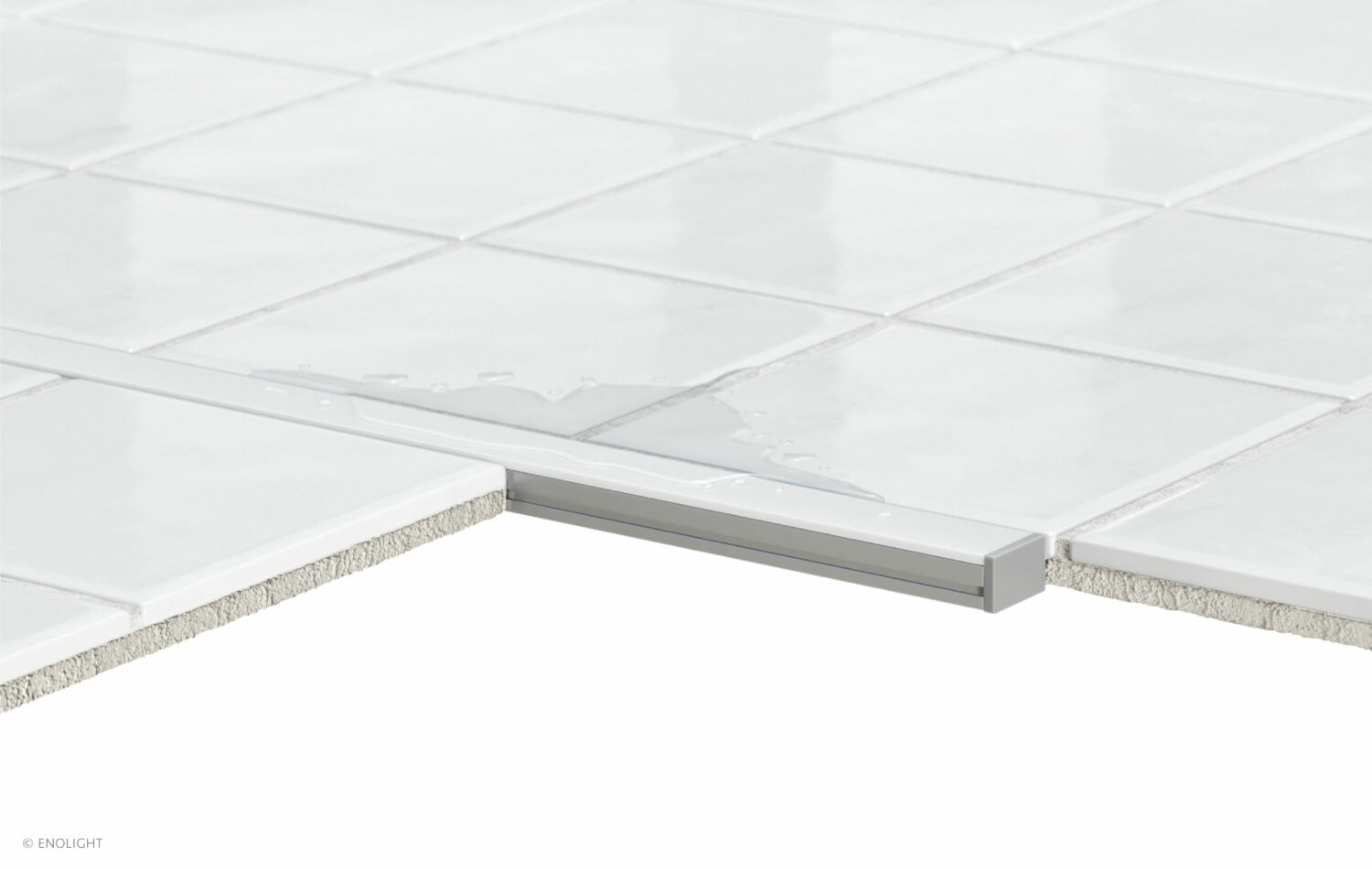

HYN1610F Waterproof Shower Linear Light with Flush Frosted Lens
HYN1610F is designed to produce a uniform distribution of diffused light in tile and stone. This linear LED luminaire has a waterproof construct and is suitable for floor, wall, and ceiling linear light designs in wet environments such as bathrooms and showers.
Characteristics
HYN1610F is a recessed linear profile made of extruded aluminum housing with a protective silver anodized finish, capped with a flush frosted lens.
This linear LED luminaire is designed to produce a uniform distribution of diffused light in tile and stone. HYN1610F has a waterproof construct and is suitable for floor, wall, and ceiling linear light designs in indoor or outdoor wet environments such as bathrooms and showers. This channel comes in variable lengths up to 10 feet.
EnoLight Hyphen series are complemented with dimmable, energy-efficient, and dot-free LED producing high color rendering index lighting. The bright white LED light source with CCT options from 2700K to 6500K provides lighting that fits the design concept.
The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. HYN1610F channels are a perfect fit for indoor-outdoor applications in residential and commercial spaces to produce ambient or decorative illumination.
EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5-year warranty.
Electrical
Input
24 Volt DC
5 W/ft – 16 W/m
Power Supply
Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage
Operating Temp
-4°F to +113°F
-20°C to +45°C
Certification
U.S./Canada UL approved Type IC Recessed
Control
Options
Combination of remote and wireless wall dimmers
Smart light control mobile app
Multi-zone
Individual and zone options for color temperature and brightness control
Dimming
Brightness and cool to warm light mode with memory saving options
Physical
Dimension

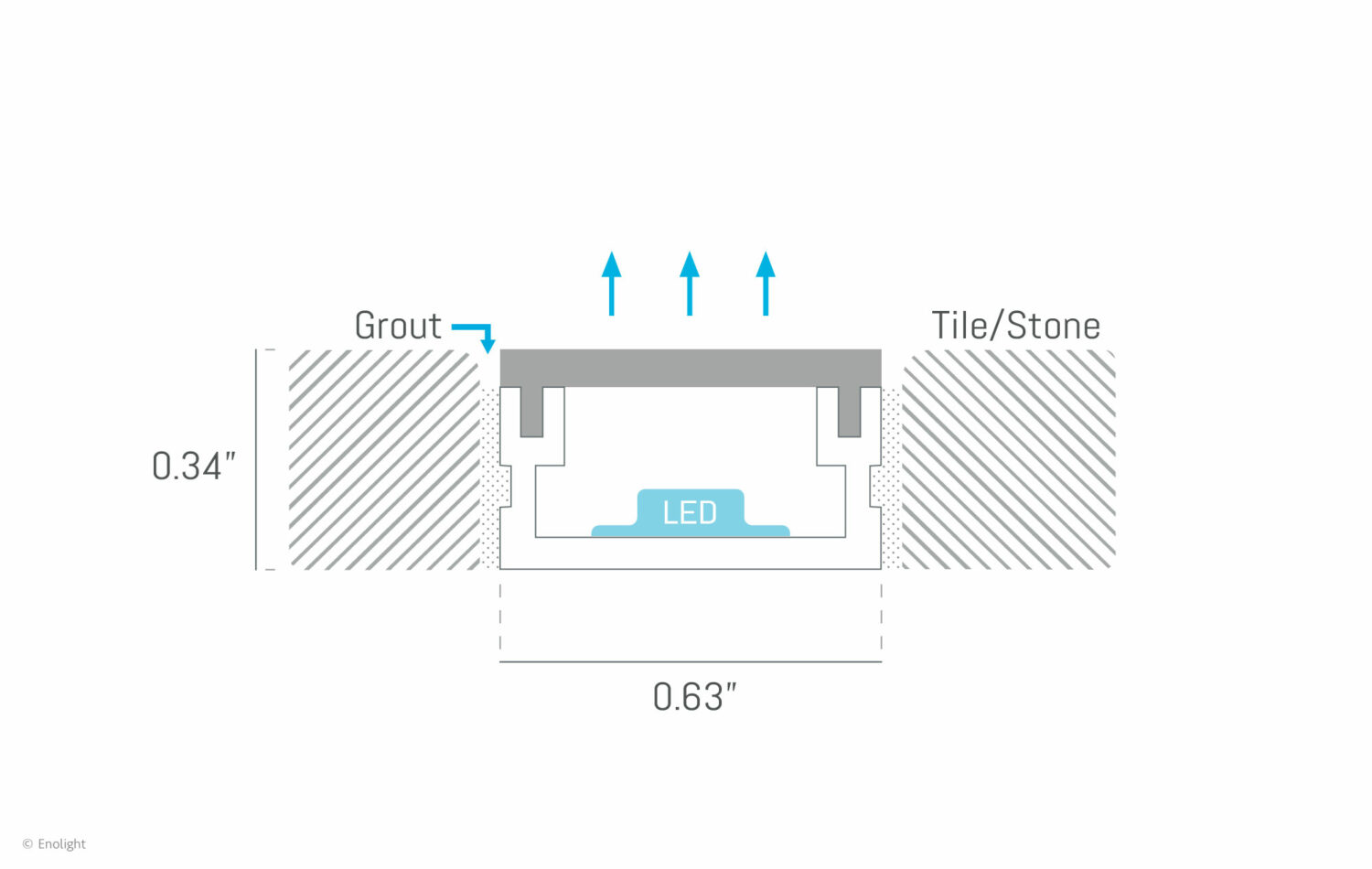

WxH: 0.63in x 0.34in - 16mm x 9mm
Length: Up to 10 ft - 3 m
Weight: 0.1 lbs/ft - 0.15 kg/m
Finish
Silver anodized aluminum, black, or white finish
Field
Indoor and outdoor IP65
Mounting
Recessed in tile and stone wet areas
Light
LED Type
Single white, tunable white, Circadian BIOS SkyBlue
CCT
2700K 3000K 3500K 4000K 5000K, tunable 2700K to 6500K
CRI Varieties
97 full spectrum natural color with bright contrast
Brightness
400 Lm/ft - 1400 Lm/m
Lifetime
50,000 hours
Warranty
5-year warranty
