VIV2315F is the improved version of wooden board linear light replacing the older model HYN1815F. The upgraded 1/2″ frosted lens on  VIV2315F is also a match for other model SPK6015F.

HYN2001C Recessed Linear Trim Light with Curved Frosted Lens

HYN2001C is designed to produce a uniform distribution of diffused light in wooden, tile and stone platforms. This luminaire has edge trims construct to cover dents and chips across the groove where the light is installed recessed.

Tags:
Product of Canada
EnoLight Approved
Tunable Dimmable
Dry Damp
IC Rated

Characteristics

HYN2001C is a linear trim recessed profile made of extruded aluminum housing with a protective silver anodized finish, capped with a flush frosted lens.

This luminaire is designed to produce a uniform distribution of diffused light in wooden, tile and stone platforms. HYN2001C has edge trims construct to cover dents and chips across the groove where the light is installed recessed. This channel comes in variable lengths up to 8 feet.

Hyphen series are complemented with dimmable, energy-efficient, dot-free LED, producing high color rendering index lighting. The bright white LED light source with CCT options from 2200K to 6000K provides the environment with desired lighting that fits the design concept.

The lighting system can be conveniently controlled with wall remote, hand remote, and smart app options. HYN1815F is a perfect fit for use in indoor and outdoor applications to produce ambient or decorative illumination.

EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5 years warranty.

Electrical

Input

24 Volt DC
2.4 W/ft – 8 W/m

Power Supply

Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage

Operating Temp

-31°F to + 113°F
-35°C to + 45°C

Certification

U.S./Canada UL approved Type IC Recessed

Control

Options

Combination of remote and wireless wall dimmers
Smart light control mobile app

blank blank  blank

Multi-zone

Individual and zone options for color temperature and brightness control

Dimming

Brightness and cool to warm light mode with memory saving options

Physical

Dimension

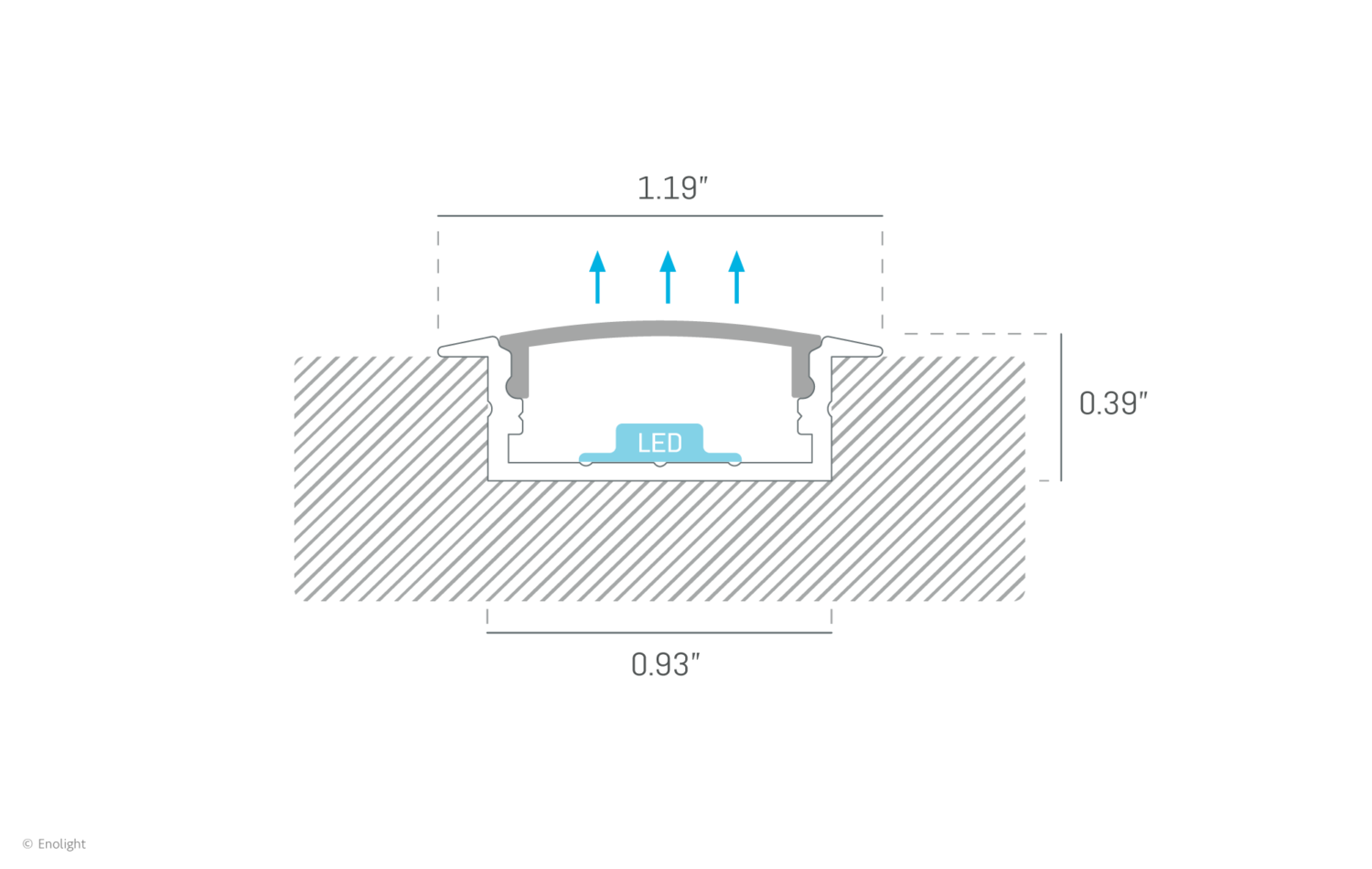

WxH: 1.19in x 0.39in – 30mm x 10mm
Length: Up to 8 ft – 2.5 m
Weight: 0.12 lbs/ft – 0.18 kg/m

Finish

Silver anodized aluminium, black, or white finish

Field

Indoor dry applications

Mounting

Recessed under cabinet or wooden platforms

blank  blank

Light

LED Type

Single white, tunable white, Circadian BIOS SkyBlue

CCT

3000K 3500K 4000K 4500K 5000K 5500K

blank

CRI Varieties

97 full spectrum natural color with bright contrast

Brightness

200 Lm/ft – 700 Lm/m

Life time

50,000 hours

Warranty

5 years warranty
