Home / Products / Pendant Lighting / VIV4160F Suspended Direct Indirect Linear LED Light with 1.5″ Frosted Lenses

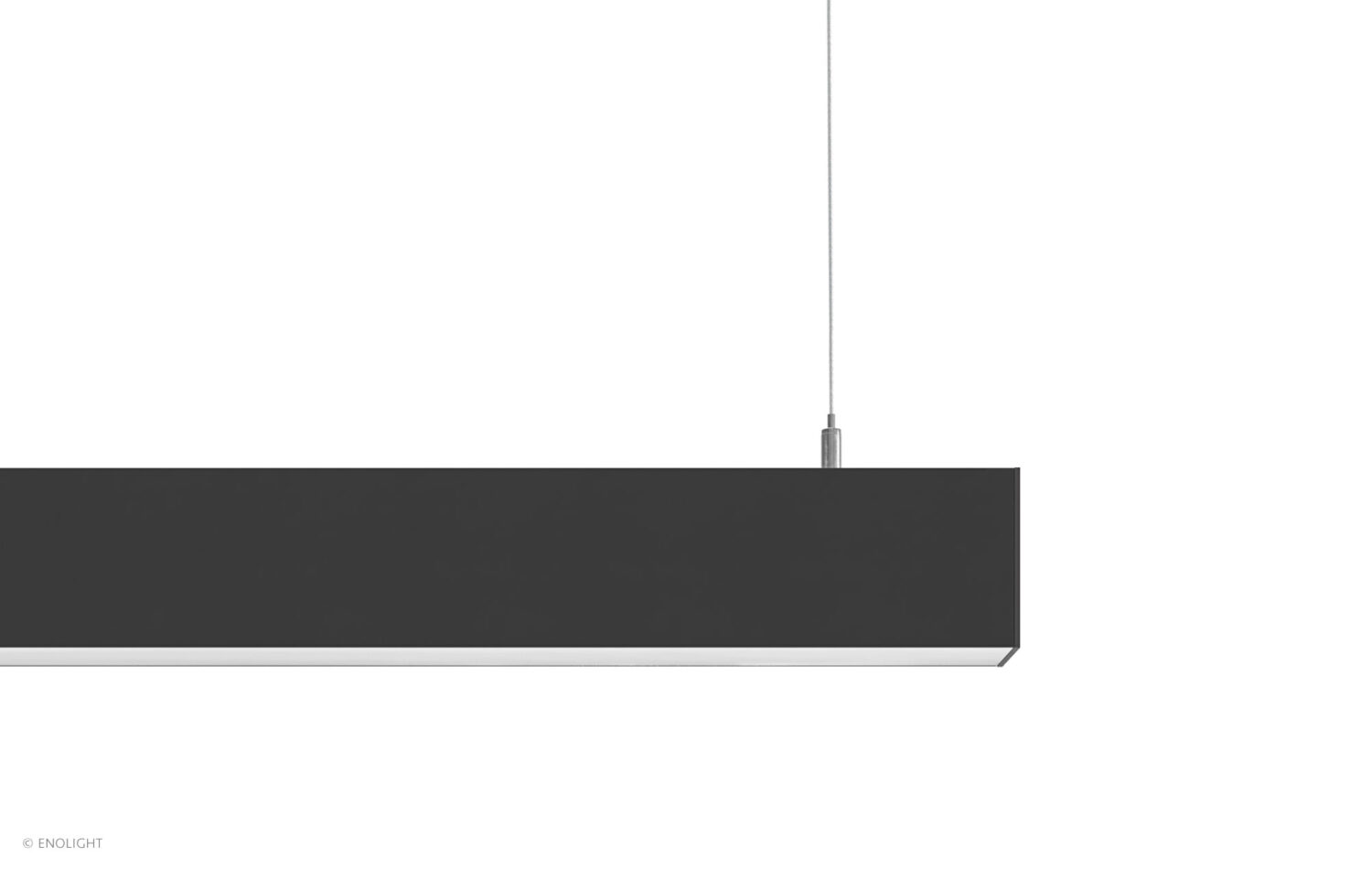

VIV4160F Ultra Long Pendant Linear Light with Indirect Uplight Channel

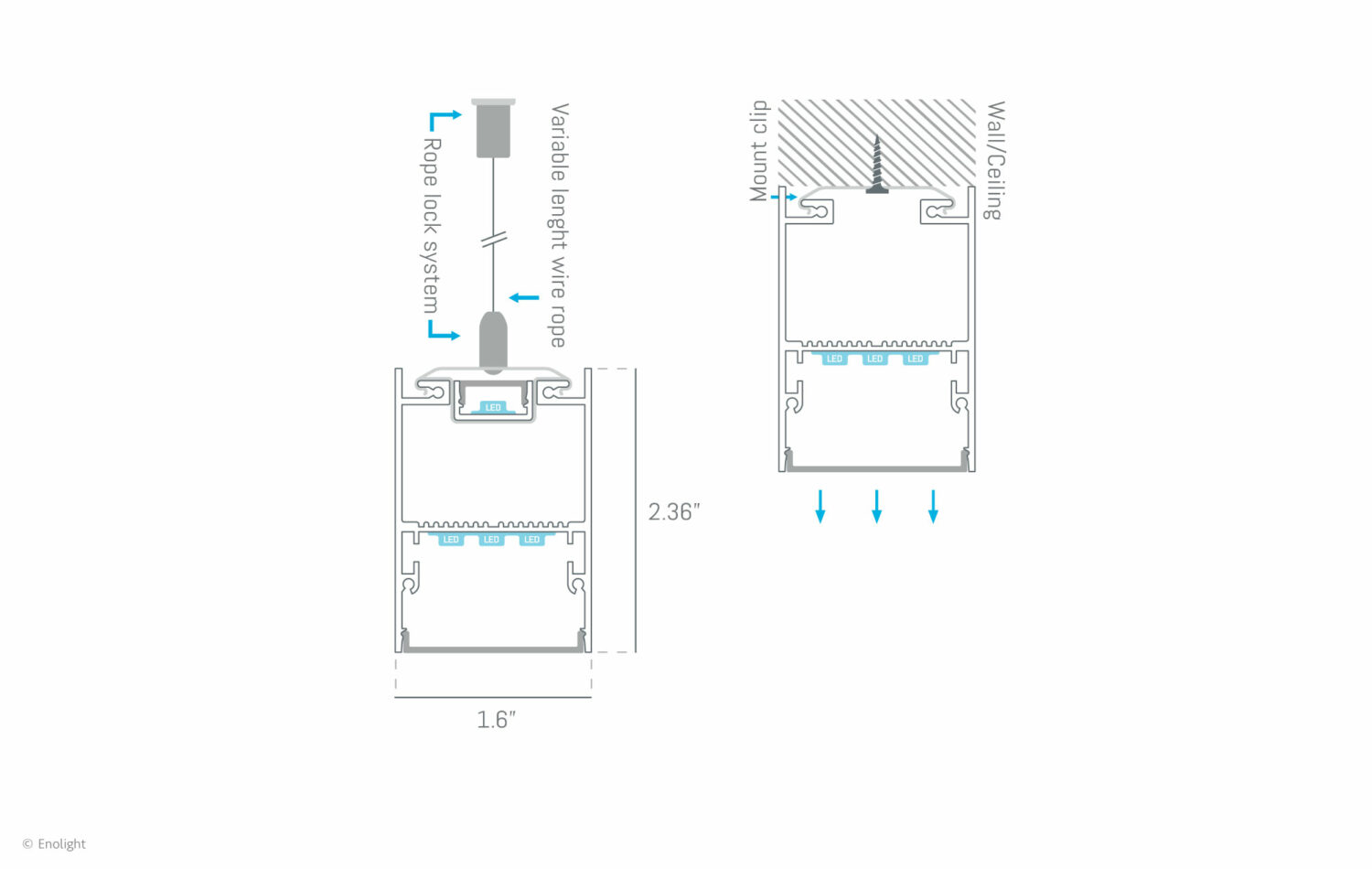

VIV4160F Ultra Long Pendant Linear Light with Indirect Uplight Channel Drawing

VIV4160F Suspended Direct Indirect Linear LED Light with 1.5″ Frosted Lenses

VIV4160F is designed with two independently-controlled lighting sources projecting light uniformly in both upward and downward directions. This linear LED luminaire is secured using suspension wire ropes and comes in variable lengths.

Tags:
Specs
Quote

Characteristics

VIV4160F is a pendant linear light made of extruded aluminum housing with a protective black powder coat matte finish, capped with flush frosted lenses.

This linear light is designed with two independently-controlled lighting sources projecting light uniformly in both upward and downward directions. VIV4160F is secured using suspension wire ropes and comes in variable lengths up to 18 feet.

Vivid series can be conveniently controlled with multi-zone wall touch keypad and smart mobile app options. VIV4160F is a perfect fit for use in residential and commercial spaces for damp and dry applications to produce ambient or decorative illumination.

EnoLight lighting solutions are designed and manufactured in Canada to the highest industry standards with 5 years warranty.

Electrical

Input

24 Volt DC
20 W/ft – 64 W/m

Power Supply

Class 2 Flicker-Free Dimming
Lutron Hi-lume Premier 0.1%
Lutron 3-wire 100%-1%
Protections: Short circuit, Over current, Over voltage

Operating Temp

-31°F to + 113°F
-35°C to + 45°C

Certification

U.S./Canada UL approved

Control

Options

Combination of remote and wireless wall dimmers
Smart light control mobile app



Multi-zone

Individual and zone options for color temperature and brightness control

Dimming

Brightness and cool to warm light mode with memory saving options

Physical

Dimension

WxH: 1.6in x 2.36in – 41mm x 60mm
Length: Up to 18 ft – 5.5 m
Weight: 0.56 lbs/ft – 0.84 kg/m

Finish

Black powder coat matte, White powder coat matte

Field

Damp and dry applications

Mounting

Pendant via variable-length suspension wire ropes

Light

LED Type

Single white, tunable white, Circadian BIOS SkyBlue

CCT

3000K 3500K 4000K 4500K 5000K 5500K

CRI Varieties

97 full spectrum natural color with bright contrast

Brightness

1600 Lm/ft – 5600 Lm/m

Life time

50,000 hours

Warranty

5 years warranty
